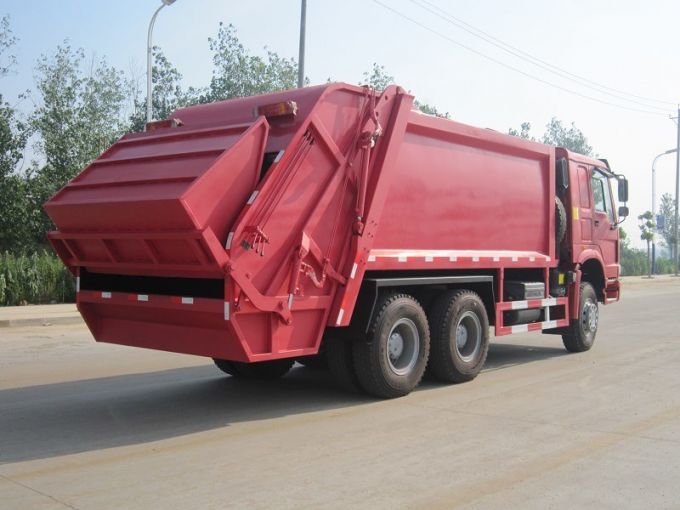

Sinotruk 20m3 6X4 Garbage Compactor Truck for Sale (ZZ3257M4347C1)

SINOTRUK 20m3 6x4 Garbage Compactor Truck For Sale(ZZ3257M4347C1)

Products Description:
Garbage compactor truck, also called hydraulic lifter Garbage Truck, is mainly used for collecting and carrying various kinds of rubbish. It is especially suitable for transporting household waste and then compressing, crushing to greatly improved the efficiency of garbage collection and transport. New compressed garbage truck not only comes with good quality and low breakdown rate, but also offers these functions of convenient maintenance and low running cost.

Main Function of garbage compactor truck:
The main function of compressed garbage truck is household waste transport. Also it can used for transporting loose materials like ash, sand, rock, soil, coal, mineral and more. This garbage truck has a separable waste hopper which can achieve the goal of reusable transport capability, especially fit for short-distance transport. For example, sanitation departments transport and handle the urban waste.

Main Configurations of garbage compactor truck:

SINOTRUK HOWO 6x4Garbage CompactorTruck Chassis: ZZ3257M4347C1
Place of origin: Shandong, China.
Engine:	Model: CNHTC brand WD615.87, 290hp, euro II emission;
	Rated power: 213/2200kw/rpm;
	Max. torque: 1160/1300-1600Nm/rpm;
	Discharge: 9.726L;
	Type: 6cylinder inline, turbo charger inter cooled, 2 valves, postposition supercharger.
Transmission:				HW15710, 10 speed;
				Type: Manual
Gear box				430 single plate dry diaphragm , hydraulically with air assist. WD615.87 with 430C;
Steering: ZF8098 hydraulic steering with power assistance;
Front axle: HF9, rated loading:9T;
Driving axle: HC16 double reduction driving axle;
Cab:		Model: HW76;
		Lengthen cabin, 1 sleeper, adjustable steering wheel, VDO panel, control module, safe-belt with 2 locks, outer sun shade.
Tyres: 12.00-20 bias tyre;
Brake system			Service brake: dual circuit compressed air brake
			Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: EVB+engine exhaust
Electric system: CAN bus control, voltage: 24V, alternator: 1540kw; Starter: 7.5KW; battery: 12V/165Ah, 2 pcs.
Cabinet Capacity: 20m3;
PrecompressorVolume: 2.5m3;
Cycletimeforgarbageloading: ≤20S;
Cycle time for garbage unloading: ≤45S;
Compressionforceforgarbageloading: 400KN;
Axle base: 4325+1350mm;
Wheelbase ( front/ rear): 2022/1850;
Min. ground clearance: 314mm;
Max. speed: 75Km/h;
Max. climbing capacity: ≥50%;
