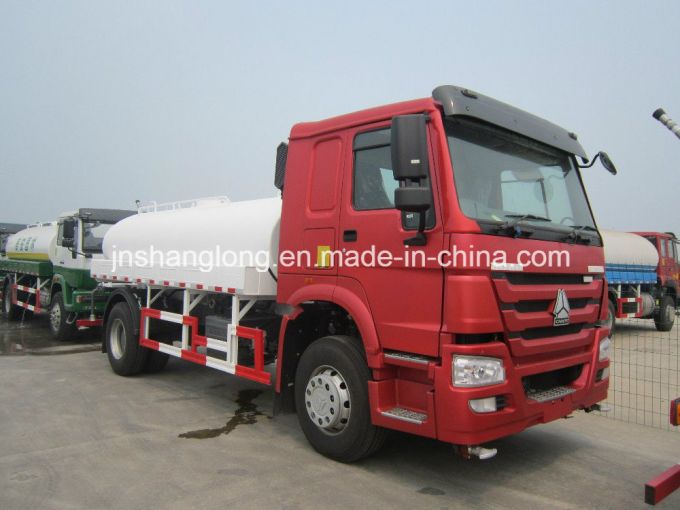

China 4X2 16m3 Water Truck

CHINA 4x2 16m3 Water Truck

MAIN PARAMETER

Descriptions	Specifications and Types
General
Truck Name	Water truck
Drive Type	4*2
Overall Dimensions L*W*H(mm)	10200x2500x3350
Engine
Engine Brand	CNHTC WD615.87
Fuel Type	Diesel
Power	213kw/290HP
Emission Standard	Euro II
Displacement(ml)	9726
Engine Type	6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis
Chassis Brand	SINOTRUK
Cabin	HW76 long cabin with one bunk and air conditioner
Tire No.	11 (with one spare tire)
Tire Specification	12.00-20 bias tire
Front/rear axle	STR/ ST16; Load 16ton
Wheelbase(mm)	4600
Transmission	HW15710C
Steering	Germany ZF8118steering system
Brake	Air brake
Water tank
Tank Volume(L)	16000 litres
Tank steel thickness	Body: 5mm Body heads: 5mm baffle plate :3mm
Water pump	hangzhouwe pump 60-90
Other configuration	four nozzles(front/rear) Rear platform anti-aircraft gun 2 pcs Spare water pipe Wax spraying (whole truck)

DETAILED INFROMATION OF WATER TRUCK
