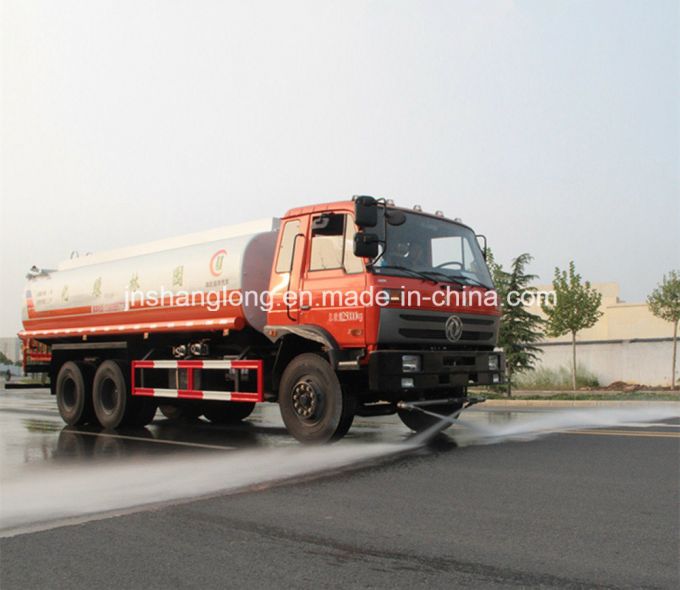

Dongfeng 6X4 18ton Water Tanker with 16m3-22m3 Capacity

Sprinkler is one of the types of tank truck, Using for transporting water orsprinkling ordustfall.
The available capacity: about 2 cubic meters to 30 cubic meters.(2-30m3)

Detail specification

ProductName		Dognfeng6x4wateringtruck
ProductModel		CLW5251GSS3
Chassismodel		EQ1258KB3GJ
Payload		18cbm
Curbweight(Kg)		9005
DriveModel		6x4
DriveType		Left-hand(optional)
VehicleBodyColor		Red,Yellow,white(Optional)
Engine	Brand	Cummins
	Model	B210-33 6cylinderin-linewithwatercooling&inter-cooling
	Displacement(L)	5900
	Max.Power(kW)	155
	RatedpowerRev(RPW)	2500
	MaximumTorque(N*m)/Rev(r/min)	700/1500
Fuelconsumption	L/100km	23.7/diesel
Clutch	Model	Φ395singlediaphragmspring
Transmission	Brand	datong or dongfeng
	Model	Datong6speed(6forwardand1reverse) Ordongfeng8speed(8forwardand1reverse)
RearAxle(driveaxle)-Model		10tons (mainreducerspeedratio:6.166)
FrontAxle-Model		5ton
Cabintype		Dongfengoneandhalfrow
Cabin		Radioandsoon,warmer,aircondition(optional)
Wheelbase(mm)		4350+1300
Wheel/Tire	Type	Nylontire
	Model	10.00-20
	Tirenumber	10+1
OilTank	Volume(L)	300
Dimensions	Overall(mm)	9950×2490×3350
(L×W×H)	Body(CBM)	20
Track	Fronttrack(mm)	1940
	Reartrack(mm)	1860/1860
Body		Q235carbonsteel
Axlesloading(kg)		7000/18000/18000
Frontoverhang/Rearoverhang(mm)		1245/3055
Approach/DepartureAngle(°)		28/10
No.ofsteelspring(front/rear)		8/12
Max.speed(km/h)		85
Max.slopeofclimb(%)		30
Min.turningdiameter(m)		18
Mini.groudclearance		240
Watertruckdetailed:
1.Tank.ismadeofcarbonsteelQ235. 2.Equippedwithfront(rear,side)sprinkler(sprinklingwidth>14m); Equippedwithrearworkingplatformwithwatercannon(range>28m); EquippedwithCLWpump(suctionlift>6m); Equippedwithfirevalve, watervalve, andfiltergauze 3.withfrontflushing,backsprinkleandsidespray,highpressureguninrear, Platform, twowaterpipe, itlengthisequaltothetank's. 4.withtheworkingplatformattheback,wichcanbeinstalledgreenhigh-pressure waterspraygun.(Thespraygunshapecanbeadjustable:heavyrain,moderaterain, drizzlingrainorhaze.) 5.Providethebesthigh-powersprinklepumpsqualityofthenational,Andwithfire coupling,self-flowaddself-primingfunction.

Our Main Water Truck for your reference

Item	Model	Tank size	Chassis	Volume (m3)	Type
1	JYJ5163GSS	5000x2160x1440	ZZ1164G4715C1	12.2	ellipse
2	JYJ5164GSS	4800x2050x1250	ZZ5164GYYK4516C1	9.5	ellipse
3	JYJ5250GSS	6780x2330x1550	ZZ1251M4441C	19	ellipse
4	JYJ5253GSS		ZZ1257M4647C	18.5	ellipse
5	JYJ5312GSSA	8700x2200x1400	ZZ1317N4668W	22.6	round aquare
6	JYJ5312GSS		ZZ1317M4669W	23.5	round aquare
7	JYJ5255GSS		ZZ1251M4441C	15	ellipse
8	JYJ5254GSSA	6700x2340x1500	ZZ1257N4648W	18	round aquare
9	JYJ5310GSS		ZZ1311M4661C	18	ellipse
10	JYJ5137GSSD	4350x2100x1250	ZZ1317G4215D1	8.5	ellipse
11	JYJ5167GSSD1	5000x1920x1250	ZZ1167G4715D1	8.9	ellipse
12	JYJ5164GSSD	4800x2050x1250	ZZ1164K4516D1	9.5	ellipse
13	JYJ5254GSSD	6400x2140x1410	ZZ1254K4446D1	14.5	ellipse
14	JYJ5314GSSD	8350x2200x1400	ZZ1314K4766D1	19.5	ellipse
15	JYJ5311GSSD	8350x2150x1350	ZZ1311N4661D1	18.5	ellipse
16	JYJ5257GSSD	6000x2220x1450	ZZ1257M4347D1	14.5	ellipse
17	JYJ5317GSSD	7560x2260x1480	ZZ1317M4667D1B	19	ellipse
