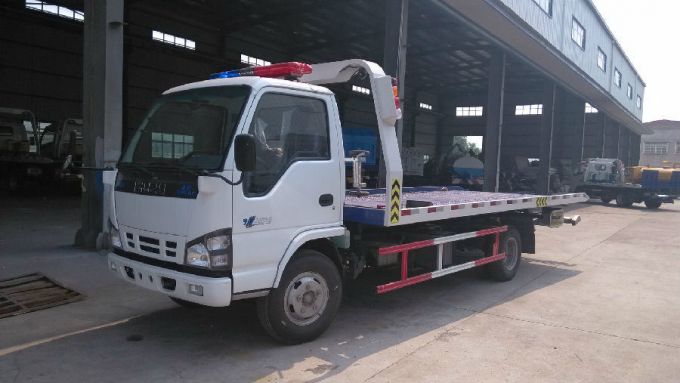

5ton Wrecker Truck with Isuzu Chassi and Engine

Recovery truck, also called as theroad wrecker,tow truck,wrecker truck,tow wreckertruck,tow truck wrecker,wrecker towing truck,etc.

Our tow truck consistsof the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.

The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.

Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.

Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electroniclamp, 20M steel wire, megaphone,etc

As a professional tow truck manufacturer,the Wrecker Tow Truck we produce is from 3 ton to 60 ton.The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow Truck Mounted Crane,etc.We also accept SKD and CKD exporting by container.

Specification

General
Truck Name	Flatbed Wrecker Tow Truck
Drive Type	4*2
Overall Dimensions L*W*H(mm)	8500*2500*2600
Curb weight	8900
Max flat carrying weight (kg)	5000
Engine
Engine Brand	Qingling ISUZU Engine Co.,Ltd
Fuel Type	4HK1-TCG40, Diesel
Power	139KW/ 190HP
Displacement(ml)	5139
Emission standard	Euro V
Engine Type	4 cylinders in line, high pressure common rail
Chassis
Chassis Brand	ISUZU, QL11009MAR1Y
Cab	Single cabin with 3 seats
Chassis size (mm)	7930x2170x2410
Tire Specification	8.25-16*6
Wheelbase (mm)	4475
Axle No.	2
Axle (fron/rear)	Front, load ton; rear, load 7ton.
Steering Wheel	left hand drive with power-assisted
Gear Box	ISUZU, MLD gear box with 6 speed, manual
Suspension (front/rear) (mm)	1110/ 2365
Steel spring number	8/10+6
Configuration
Flatbed	3P2A, Folding ram tablet
Rear working light	3 pcs
Hydraulic winch	One (25 meter steel wire rope)
Toolbox	1 piece
Hand washing tank	1 piece
L type Hold the tyre rack	2 pcs
Bundling belt	6 pcs
Asked fork	2 pcs
Asked fork support	2 pcs
chain hook	1 piece
Long line warning lights	1 piece
