China 4*2 Road Wrecker 5ton Mounted Crane

China 4*2 Road Wrecker 5ton Mounted Crane

DETAILED INFORMATION

General
Truck Name	Flatbed Wrecker Tow Truck
Drive Type	4*2
Overall Dimensions L*W*H(mm)	8500*2500*2600
Curb weight	8900
Max flat carrying weight (kg)	5000
Engine
Engine Brand	Qingling ISUZU Engine Co.,Ltd
Fuel Type	4HK1-TCG40, Diesel
Power	139KW/ 190HP
Displacement(ml)	5139
Emission standard	Euro V
Engine Type	4 cylinders in line, high pressure common rail
Chassis
Chassis Brand	ISUZU, QL11009MAR1Y
Cab	Single cabin with 3 seats
Chassis size (mm)	7930x2170x2410
Tire Specification	8.25-16*6
Wheelbase (mm)	4475
Axle No.	2
Axle (fron/rear)	Front, load ton; rear, load 7ton.
Steering Wheel	left hand drive with power-assisted
Gear Box	ISUZU, MLD gear box with 6 speed, manual
Suspension (front/rear) (mm)	1110/ 2365
Steel spring number	8/10+6
Configuration
Flatbed	3P2A, Folding ram tablet
Rear working light	3 pcs
Hydraulic winch	One (25 meter steel wire rope)
Toolbox	1 piece
Hand washing tank	1 piece
L type Hold the tyre rack	2 pcs
Bundling belt	6 pcs
Asked fork	2 pcs
Asked fork support	2 pcs
chain hook	1 piece
Long line warning lights	1 piece

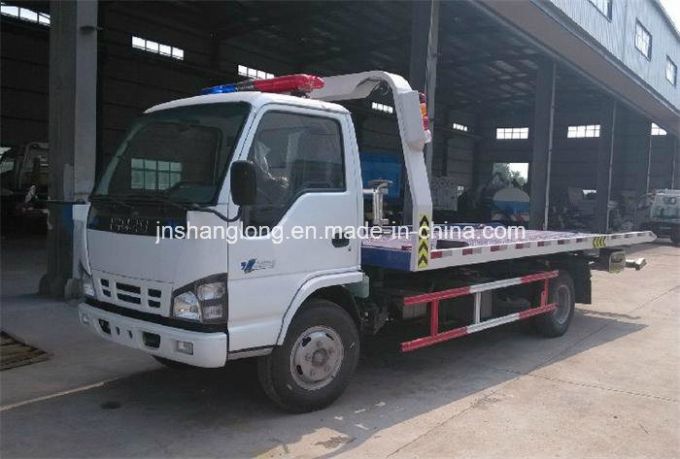

PICTURE FOR REFERENCE




OTHER KIND OF WRECKER TRUCK
1>. Chassis: ISUZU; DONGFENG; SINOTRUK HOWO; JAC; BEIBEN; XCQC; FAW....
2>. Other configuration: crane (telescopic boom/ folding boom)
3>. Type: Light wrecker truck; heavy wrecker truck.
