/HOWO 6X6 Tractor Truck with 2 Axles Logging Trailer
- Price can be negotiated
- 1 Unit
- 44 Unit
- 22 days
Product Description

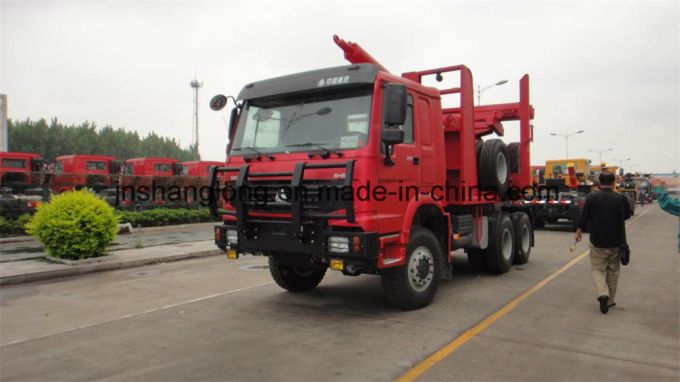

HOWO 6x6 tractor with 3 axles logging trailer
| WHOLE TRUCK SPECIFICATION | |||
| Overall Size | 11500*3200*3900 mm | ||
| Wheelbase | 3500 mm | ||
| Curb weight | 12300 kg | ||
| Color | Optional (red/white/blue/yellow…) | ||
| CHASSIS SPECIFICATION | ZZ4257N3557A/S0WA | ||
| Brand | SINOTRUK HOWO | ||
| Drive | Left hand drive (6x6) | ||
| Cabin | HW76 long cabin, with one sleeper, safety belts, with air conditioner. VDO dash board | ||
| Engine | Model | WD615.47 | |
| Type | 6 cylinder inline, turbo charger inter cooled. | ||
| Power | 273 KW (371 HP) | ||
| Emission | Euro 2 | ||
| Transmission | HW19710, 10 forward gears + 2 reverse gears | ||
| Steering | Germany ZF 8118 steering, 20MPa pressure steering pump | ||
| Suspension | Front | Steel plate spring suspension system | |
| Rear | Integral balancing suspension system | ||
| Front Axle | STR, drum type, load 7ton | ||
| Rear Axle | ST16, double reduction; 2*16 ton. (ratio:5.73 ) | ||
| Bumper | High bumper, without protectivepalisade | ||
| Oil tank | 400L (High strength iron military square tank) | ||
| Total weight | 25000 kg | ||
| Curb weight | 9600 kg | ||
| Chassis size | 7178x2496x3110 mm | ||
| Wheelbase | 3500 mm | ||
| Tyres | 12.00R20, radial tyres. (11 pcs); (14.00-20 & 14.00R20 is optional) | ||
| Splitter | 2000,16 pulsed electromagnetic sensors with differential, high-low ratio 0.89 / 1.536 | ||
| Clutch | Φ430, Pull-type diaphragm clutch (1500N.m) | ||
| SEMITRAILERSPECIFICATION | |||
| DrawBar | Long 9000 mm; Diameter 270 mm; Thickness 12 mm. (divided into two parts) After the improvement of our engineers, the current conventional configuration is only one complete draw bar. The intensity is much higher than the two parts. | ||
| Portal frame | Portal frame inside width 2800mm; | ||
| Sidestake | 1000mm (we can do to 2000 mm) | ||
| Axle | 2x16T, FUWA brand | ||
| Suspension | SinglePointSuspension, FUWA brand | ||
| Thickness of steel | Head board & work plate, 8mm,Head board height: 1500mm (not higher than cabin rear view window) | ||
| coupling hook | Strengthened (2 pcs plate with 20mm thickness, with hole, connect with a thick round steel pin) | ||
| Other | spray wax (chassis & semi trailer) | ||
