60-80t 4 Axle Truck Trailer

Product Description

60-80T 4Axle Truck Trailer
60-80t 4 Axle Truck Trailer

Weight:
	Loading Capacity	60T
	Tare weight	14T
Specification:
	Axle number	four axle
	Axle specs.	FUWA brand 13T(long axle)
	Suspension	Mechanical suspension American type local brand
	Leaf spring	Leaf spring 8pcs9016mm
	Wheel	8.25R20double star brand16pcs
	Dimensions (LxWxH) Loading Dimensions(LxWxH)	14500mm3500mm3500mm 9600x3500x1100mm
	Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear 24T
	King Pin	JOST 3.5" bolt in king pin
	Rim	6.5-20 Jingu brand16pcs
Tire:
	Number of Tire	16pieces
	Spare Tire Carriers	1piece
frame: (specs. and materials)
	The material of Main beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 22mm,width 200mm;Middle Flange 14mm height 500mm;bottom flange 22mm,width 200mm
	Side beam Cross member Platform plate	25# channel steel(Q235) 16# channel steel(Q235) 6mm checkered plate
	Ladder	Mechanical ladder
Miscellaneous:
	Brake system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
	Lights	LED 8side lights and 2rear lights 2width lamp
	Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
	Accessories	One standard tool box,one crank,one shaft head wrench,four side light,two rear light

More information, please contact with Ady at any time, thanks alot.
Mobile:+86 18653113471

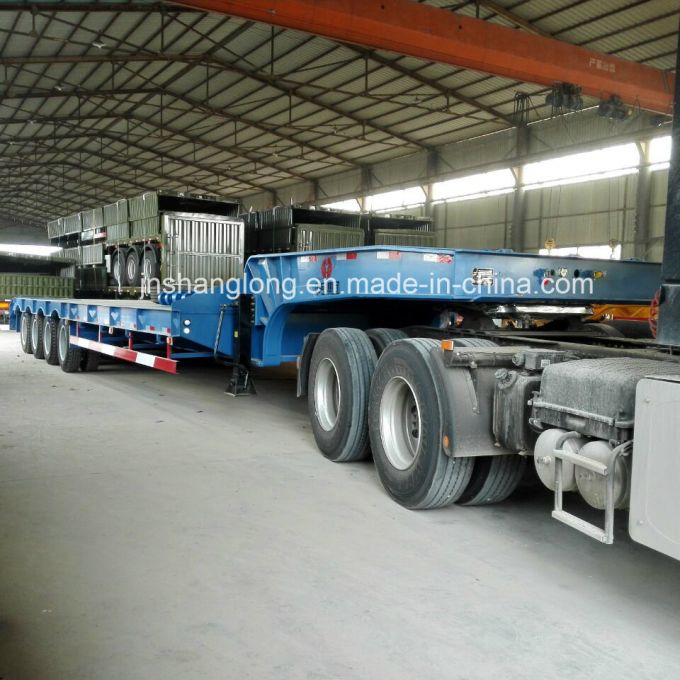

Product Images
