80t 3 Line 6 Axle Semitrailer Sales

80T 3Line 6Axle Semitrailer Sales


MAIN TECHNOLOGY PARAMETERS:

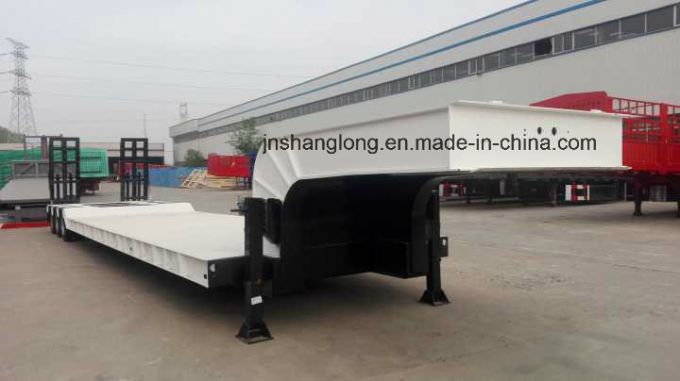

Type		Low bed semi trailer
Shipping Terms		By bulk cargo carrier because its huge size
Delivery time		about 45days after we received 100% irrevocable LC at sight.
Weight:
	Loading Capacity	80 T
Specification:
	Line	Three lines
	Axle number	Six axle
	Axle specs.	YUEKEbrand
	Suspension	Argo bogie suspension
	Tyre	8.25R20 double star brand
	Dimensions (LxWxH) Loading Dimensions(LxWxH)	17325*3500*3180mm (the length can be choose freely, we can design the size according to your special requirements ) 13150x3500x1000mm
	Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
	King Pin	3.5" Bolt in king pin
	Rim	6.5-20 china brand 24pcs
Tire:
	Number of Tire	24pieces
	Spare Tire Carriers	1piece
frame: (specs. and materials)
	The material of Main beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 25mm,width140mm;Middle Flange 18mm height 500mm;bottom flange 25mm,width 140mm
	Side beam Platform plate	25# channel steel(Q235) 5mm checkered plate
	Ladder	Mechanical ladder
Miscellaneous:
	Painting	According to the requirement of the buyer
	Marking	According to the requirement of the buyer
	Side Guard	According to the requirement of the buyer
	Brake system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
	Lights	LED 8side lights and 2rear lights 2width lamp
	Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
	Accessories	One standard tool box,one crank,one shaft head wrench,four side light,two rear light

We are the specialized truck trailer supplier in China. With high reputation and competitive price. Welcome your inquiry at any time. Email me or call me directly if any question at any time.Attd: Haitao Yan
mobile: +86-18653113471
