/4 Axle 3.5m Width 70t Low Bed Semi Trailer
- Price can be negotiated
- 1 Unit
- 60 Unit
- 28 days
Product Description

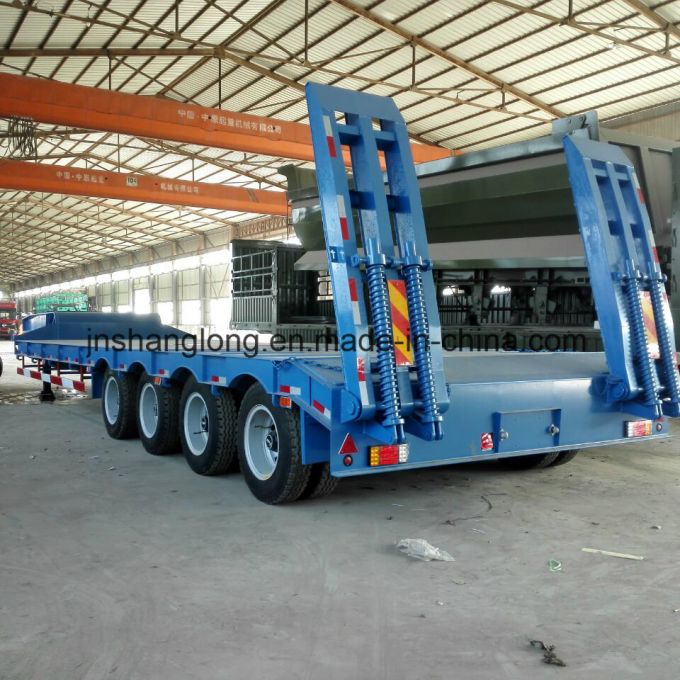

4 Axle 3.5m Width 70T Low Bed Semi Trailer
Pictures:
More information, please contact with Ady at any time, thanks alot.
Mobile:+86 18653113471
| 4 AXLE LOW BED SEMI TRAILER | |
| Tare weight | 14000kg |
| Size | 14500mm*3500mm*3500mm |
| Payload | 80T |
| Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 22mm,width 200mm;Middle Flange 14mm height 500mm;bottom flange 22mm,width 200mm |
| Side beam | 25# channel steel(Q235) |
| Cross member | 16# channel steel(Q235) |
| Floor | 5mm checkered plate |
| Side wall | No |
| Front board | No |
| Axle | 4 axleFUWA brand13T (long axle) |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 8pcs*90*16mm |
| Tire | 8.25R20double star brand16pcs |
| Wheel rim | 6.5-20jingu brand16pcs |
| Kingpin | JOST brand 3.5" bolt in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Ladder | Mechanical ladder |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | No |
| Lights | LED 8side lights and 2rear lights 2width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
More information, please contact with Ady at any time, thanks alot.
Mobile:+86 18653113471
