/70m3 Bulk Cement Trailers for Sales
- Price can be negotiated
- 1 Unit
- 25 Unit
- 23 days
Product Description

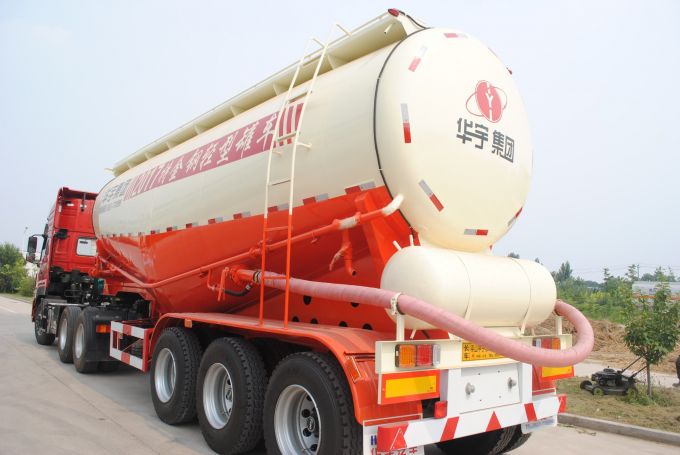

70m3 Bulk Cement Trailers For Sales
More information, please contact with me at any time!
Ady yan
mobile:+86 18653113471
| Tare weight | 11000kg |
| Size | 13700mm*2500mm*4000mm |
| Volume | 70M3 |
| Tank body | Q235A/5mm steel sheet |
| End plate | Q235A/6mm .ball shape |
| Axle | 3 axleFUWA brand16T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 8pcs*90*16mm |
| Manhole cover | 500mm manhole cover .2 sets |
| Tire | 12.00R20 double star brand 12pcs |
| Wheel rim | 8.5-20china brand12pcs |
| Discharge valve | 4"disc valve |
| Discharge pipe | 4"seamless steel tube |
| Outlet pipe | 4"rubber hose.6m |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Engine | Diesel engine: weichai brand model: 4102. |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | Double |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | No |
| Light | LED 8side lights and 2rear lights 2width lamp |
| Air-charging system | 2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
More information, please contact with me at any time!
Ady yan
mobile:+86 18653113471
