/Three Axle Box Semi Trailer 45ton Van Trailer
- Price can be negotiated
- 1 Unit
- 45 Unit
- 28 days
Product Description

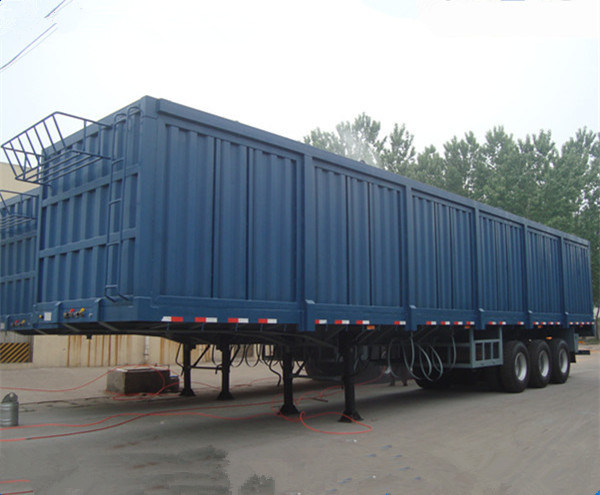

Three Axle Box Semi Trailer 45Ton Van Trailer---13 meters
| Three axle box semi trailer |
| Overall size: 13000x2550x3400mm |
| Loading capacity: 45000 kg |
| Total weight: 10000kg |
| Axle: Three axles, FUWA brand,13000kg |
| Landing gear : JOSTC200 brand two-speed,manual operating ,heavy duty landing gear 24t |
| Twist lock: No |
| Kingpin: 2'' bolt-in king pin |
| Tire : 12R22.5, 12 pcs |
| Wheel rim: 9.0-22.5 |
| Suspension: Mechanical suspension |
| Leaf spring: Leaf spring 7 pcs |
| Floor: 3mm bottom plate .side wall 2 mm |
| Chassis: Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 16mm,width200mm;Middle Flange 8mm;bottom flange18mm,width 200mm |
| Vehicular applications: Cargos transport |
| Drawing: Including |
| Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Painting: Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories: One standard tool box |
