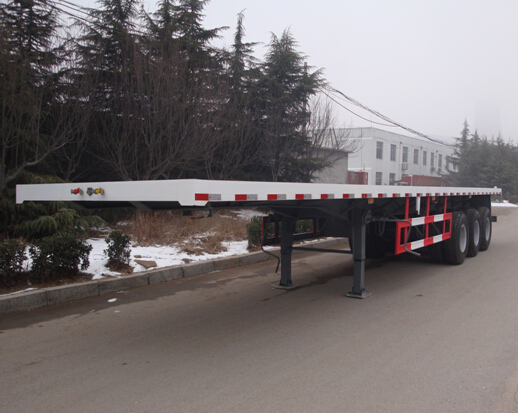

Three Axle 40 Feet Container Semi-Trailer (TAZ9406TJZ)

3 Axle 40 Feet Flat Bed Semi Trailer

A semi-trailer, an articulated lorry, refers to atrailer having wheels at the back but supported at the front by atowing vehicle. Its centre of gravity is in the front of axles. It also comes with acoupling device passing the horizontal or vertical forces to towing vehicle.

Features and Advantages of semi-trailer:
Compared with individual vehicle, our semi trailer can make comprehensive economical profits for road transportation. Not only is cost reduced by 30%-40%, but also oil consumption is lowered by 20%-30%. More importantly, semi trailer has an important role in promoting logistic operations of China.
1. Container transport semi trailer is specially designed to container transport and it comes with frame construction without floor.
2. Low plate semi trailer offers plain structure without railing.
3. Semi trailer with railing framework embraces ahuge enclosed box.
4. Tank semi trailer has asealed tank framework.

THREE AXLE ConTAINER SEMI-TRAILER
1. Overall size: 12500x2500x1610mm
2. Loading capacity: 40000 kg
3. Dead weight: 7500kg
4. Axle: Three axles, FUWA brand, 13000kg class
5. Landing gear: YAHUA FW2800 11T
6. Kingpin: 90# "fabricated"
7. Tire: 12.00R20 12 pieces
8. Suspension: Steel spring 9016-10
9. Main structure: Upper wing plate: 14mm; Lower wing plate: 16mm; Thickness: 16mm
10. Electric system: 1set of whole sealing wiring harness +lamps, 1piece of Seven core socket
11. Tool box: One set, 1000x450x450mm
12. Spare tire support: 2pieces, without spare tire

More information, please contact with Ady at any time!
