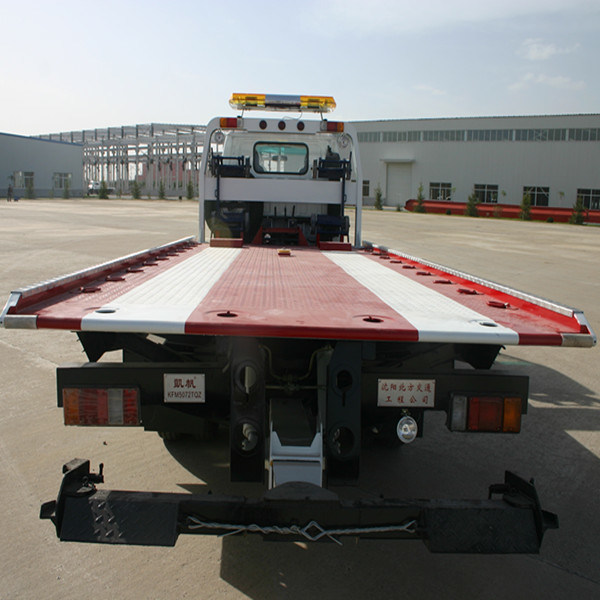

Kaifan Light-Duty P Series (ISUZU) Flatbed Road Wrecker

KaiFan Light-duty P Series (ISUZU) Flatbed Road Wrecker

Working Condition:
1. Altitude: 0-4500m
2. Temperature: -35° C--+45° C
3. Relative humidity: 80%
4. Wind force: ≤ 8degree

Working Range:
KFM5072TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind

Items		Unit	Value
BoomStructure	Ratedtowingweight	kg	7300
	Max.Liftingweight	kg	1500
	Max.Liftingweightoffullextendingboom	kg	800
	Effectivelengthofboom	mm	1600
	Extensiontravelingofboom	mm	1200
	Elevationofboom(upper/lower)	°	9~-10
PlatformStructure	Min.Elevationoffullextendingplatform	°	8
	Max.Loadingofplatform	kg	3000
	Externaldimensionofplatform(length×width×height)	mm	5400×2140×57
	Groundclearanceofcagefloor	mm	1014
	Max.Pullingpowerofwinch	kg	4000
	Dia.Ofsteelcable	mm	10
	Lengthofsteelcable	m	25
	Min.Speedofsteelcable	m/min	4.5
Vehicle Parameters	Externaldimension	mm	7460×2220×2460
	Chassismodel		NKR77PLPACJAY
	Drive		4×2
	Axlebase	mm	3815
	Thewholeweightofemptyload	kg	4170
	Loadoffrontaxleofemptyload	kg	1620
	Loadofrearaxleofemptyload	kg	2550
	Thewholeweightoffullload	kg	7300
	Loadoffrontaxleoffullload	kg	1950
	Loadofrearaxleoffullload	kg	5350
	Wheelbase(front/rearaxle)	mm	1404/1425
	Frontsuspension	mm	1015
	Rearsuspension	mm	2100
	Approachangle	º	24
	Departureangle	º	13
	Max.Speed	km/h	≥95
	Max.Gradeability	%	≥30
	Min.Turningdiameter	m	14.1
	Min.Groundclearance	mm	190
	Enginemodel	-	4KH1-TC
	Engineemission	ml	2999
	Ratedpower	kw/r/min	96/3400
	Max.Torque	n@m/r/min	280/1700
	Fueltype		Diesel
	Standardofemission		ENIII
	Tiresize		7.50-15,7.00-16 (option7.50R15,7.00R16)
	Persons		2
