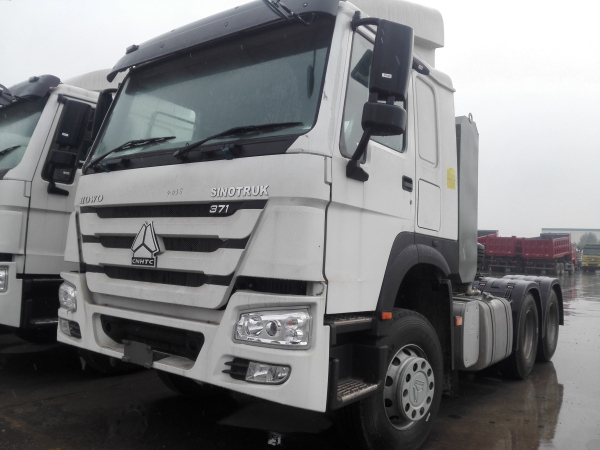

HOWO 6X4 Prime Movertractor Head Truck

HOWO 6X4 TRACTOR HEAD TRUCK/ Prime mover


1/ Shandong Shanglong Economic and Trade Co. Ltd. Is located in Jinan, China. With more years development, we specializes in exporting SINOTRUCK series trucks equipment and spare parts.


2. Spare part business Range:
1. TRUCK filters: Multi-series filter, air filter, fuel filter, oil filter, like SINOTRUK, FOTON, FAW, DONGFENG, SHACMAN, Volvo, CAT, Renault, KOMASTU

2. Differential assembly: For SCANIA, Volvo, Benz, MAN, Nissan, HINO, ISUZU, MITSUBISHI

3. SINOTRUK whole series spare parts

Main tractor model		ZZ4257N3241A
Cabin	Model	HW76
	Type	Lengthen cabin , single sleeper , adjustable steering wheel , VDO panel , control module , safe-belt with 2 locks , outer sun shade.
Engine	Model	WD615.69
	Rated power KW/rpm	247/2200
	Max .torque Nm/rpm	1350/1300-1600
	Discharge L	9.726
	6 cylinder inline , turbo	6 cylinder inline , turbo charger inter cooled , 2valves , WD615 engine with2 valves , postposition supercharger , D12 engine with4 valves , middle supercharger .
Gear box		Φ430 single plate dry diaphragm , hydraulically with air assist . WD615.47 , D12.38and D12.42 engine with 430A, WD615.69 with430B , WD615.62 , WD615,87 with 430C
Transmission		SINOTRUKHW19710, Main and auxiliary box structure , the main box double counter shaft Planetary reducer
Front axle		HF9 drum ,9trated loading
Rear driving axle		HC16single reduction( ratio:3.73 ; 4.22available)
Suspension		Front & rear suspension are semi-elliptic leaf springs + shock absorber + stabilizer
Steering system		ZF8118 steering gear box ,ZF power steering pump , system pressure:18MPa
Brake system		Driving brake: dual circuit compress air brake: parking brake: spring energy ,compressed air operating at rear wheel ; auxiliary : EVB + engine exhaust(ABS is Available)
Electric system		CAN bus control , voltage:24V:alternator:1540W;starter:7.5KW;battery:12V/165Ah,2pcs
Tyre		12.00R20
Fuel tank capacity L		400
Payload kg		9180
Gross vehicle weight kg		25000
Total weight of trailer kg		39200
Loading capacity of saddle kg		15690
Overall size mm		6800*2496*2958
Axle base mm		3200+1400
Front/Rear suspension mm		1500/725
Wheelbase(Front/Rear) mm		2022/1850
Min. ground clearance mm		267
Approach/departure angle		16/70
Max. speed km/h		102
Max .climbing capacity %		24
Min .turning circle m		15
Height from saddle to ground mm		1360/1326
Remarks
Front/rear rotation radius mm		2790/2230
Fifth wheel size		90#(3.5inch)
