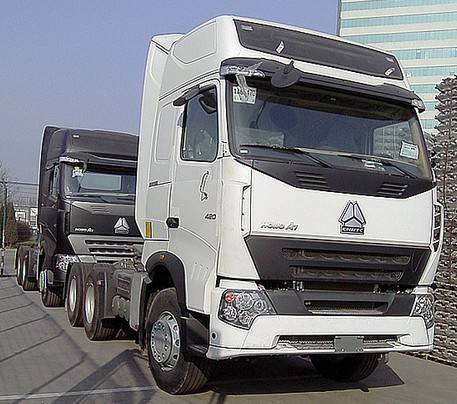

HOWO A7 Tractor Truck HOWO A7 HOWO Tractor

HOWO A7 Tractor Truck
Outline Dimension (mm) 6985(L) x 2496 (W) x 3850 (H)
Engine Power: 371HP, 420HP
Total wight: 39500kgs
Transmission: HW20716, 16 forward and 2 reverse

Type		6*4 HOWO-A7 Tractor Truck
Model		ZZ4257N3247
Cabin		A7 standard cabin with air-condition
Outline Dimension (mm)		6985*2496*3850mm
Engine	Brand origin	SINOTRUK-HOWO
	Power	371HP, 420HP
	Displacement	9726ml
	Tail gas emission standard	Euro III
Load	Front axle	7, 500kg
	Rear two axles	16, 000kg
Kerb mass		8.500kg
Wheelbase(mm)		3225+1350mm, 3200+1400mm
Overhang (front/rear)(mm)		1540/870, 845
Steel spring leaves		9/9+6
Front Tread (mm)		2022, 2041
Rear Tread (mm)		1830
Clutch		outside diameter430 mm
Transmission model		HW20716A, the torque: 20000Nm, 16 forward and 2 reverse
Tyres		12: 00-20PR
Rim		8.5-20
Brakes		Air braking
Steering		ZF power steering, model ZF8098, hydraulic steering with power assistance
