Duble Axles Low Bed Semi Trailer

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 100 Unit
Delivery time： 17 days

Contact Supplier

Product Description

Duble axles low bed semi trailer load capcity 30 ton

Conficuración básica y parámetro pricipal tecnología:

Descriptions & Specifications

Double axles low-plate semi-trailer

Overall size: 13000x3000x1800mm

Loading capacity: 30000 kg

Dead weight: 10000kg

Axle: Double axles, FUWA brand,13000kg class

Landing gear : two-speed, manual operating ,heavy duty landing gear

Kingpin: 3.5"bolt-in king pin 90

Tire : 12R22.5 8pcs

Wheel rim: 9.0-22.5 8pcs

Suspension: Mechanical suspension

Leaf spring: Leaf spring

Floor: 5mm checkered plate

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm;bottom flange 20mm,width 140mm

Ladder: Mechanical ladder

Vehicular applications: Machine transport

Drawing: Including

Braking system: RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

Paiting: Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Accessories: One standard tool box

Product Images

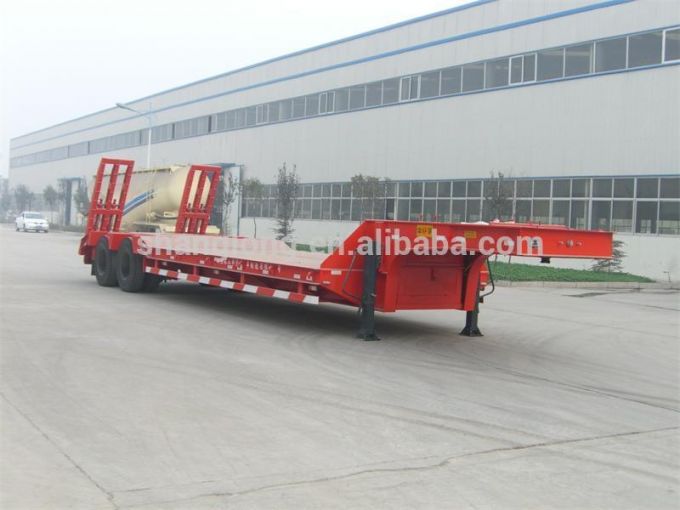

Duble Axles Low Bed Semi Trailer Images 1
