/40-60 Ton Low Flatbed Semi Trailer 13meters Truck Trailer Trucks
- Price can be negotiated
- 1 Unit
- 42 Unit
- 24 days
Product Description

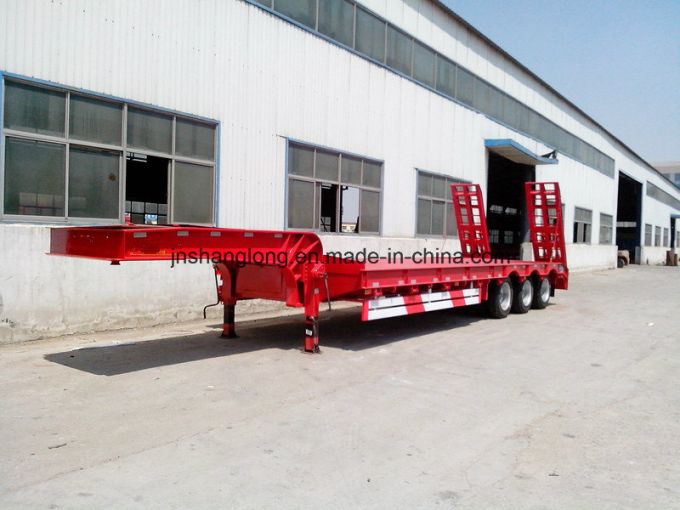

Heavy duty 40-60 ton low flatbed semi trailer 13meters truck trailer trucks
| Three axle low-plate semi-trailer |
| Overall size: 13000x3000x2780mm |
| Loading Dimensions: 9550x3000x1250mm |
| Loading capacity: 60000 kg |
| Dead weight: 12000kg |
| Axle: Three axles, FUWA brand,16000kg class |
| Landing gear : two-speed, manual operating ,heavy duty landing gear 28t |
| Kingpin: 3.5bolt-in king pin |
| Tire : 315/80R22.5 double star |
| Wheel rim: 9.0 |
| Suspension: Mechanical suspension |
| Leaf spring: Leaf spring |
| Floor: 5mm checkered plate |
| Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.top plate 20mm.bottom plate 20mm.middle plate 14mm.height 500mm |
| Ladder: Mechanical ladder |
| Vehicular applications: Machine transport |
| Drawing: Including |
| Braking system: RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Paiting: Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories: One standard tool box |
