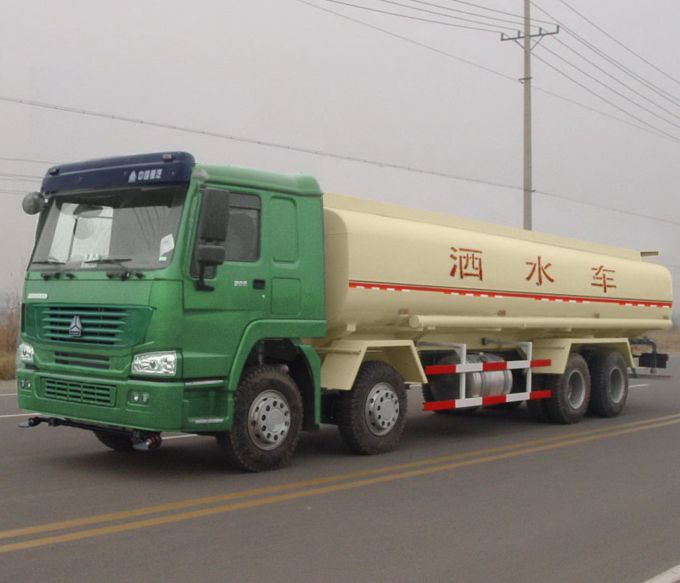

Sinotruk HOWO 8x4 336HP Water Tank 30m3

SINOTRUKHOWO 336HP 8*4 Water Tank

The description of Water Truck:

Water Tank Truck, also known as virescence spraying vehicle and water tanker, is mainly composed of truck chassis, water inlet and outlet system and tank body. Water Truck has various spray and water-carrying functions according to different environments and purposes.

The application of Water Tank Truck:

Item Technical parameters
Chassis model: ZZ1251M4441W
Dimension(LxWxH) (mm): 9795x2495x3070
Wheelbase (mm): 4350+1350, 4350+1300
Track front/rear (mm): 2047/1820
Tire specification: 11.00-20, 11.00R20
Chassis manufacturer: China National Heavy Duty Truck Group Co., Ltd.
Engine model: WD615.62, WD615.87
Max. Power (kw/r/min): 196/2200, 213/2200
Engine manufacturer: China National Heavy Duty Truck Group Co., Ltd.,
Front overhang / rear overhang (mm): 1320/2775, 2825
Approach angle / Departure angle: 15/10
Max. Speed (km/h): 90
Max. Total mass (kg): 24980
Kerb mass (kg): 12400
Rated loading mass (kg): 12450
Tank effective volume (m3): 30
Working speed (km/h): 5-10
Pumping capacity (L/min): 900
Sprinkling width (m): 14-18
Anti-aircraft spray gun vertical gunshot(m): 26
