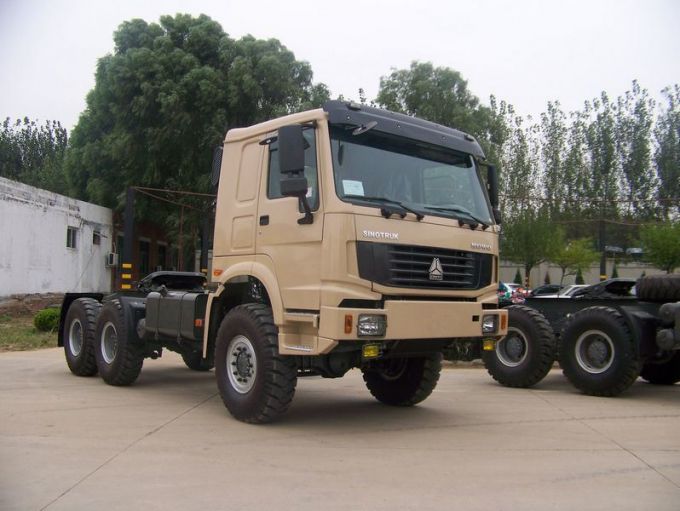

HOWO 6*6 All Driving Tractor (ZZ4257N3557A)

Specifications & Configuration
EngineMake: SINOTRUK
Engine model: WD615.47, Euro II emission standard
4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 371 PS (273kW) at 2200 r/min
Maximum torque: 1460 N. M at 1300~1600 r/min
Displacement: 9.726L
Specific fuel consumption: 195 g/kWh
Clutch Φ 430 mm diaphragm spring clutch, hydraulically operating with air assistance
Transmission Model HW19710C, 10 forward & 2 reverse
Ratio: 14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00
Front Axle Model: STR cast front steering drive axle
Rear Axles Model: ST16 16t double reduction drive axles with differential locks between wheels ratio: 5.73 6.72
Chassis frame: Ladder frame with section 300× 80× 8 (mm), subframe with section 280× 70× 5 (mm)
Front suspension: 9 leaf springs, telescopic shock absorbers
Rear suspension: 9+6 leaf springs, telescopic shock absorbers and rear stabilizer bar
Transfer Case Model: ZQC2000 ratio(high/low): 0.89/1.536
Steering Model ZF8098, hydraulic steering with power assistance
Ratio: 22.2~26.2
Brakes Service brake: Dual circuit compressed air brake
Parking brake (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Fuel tank 400 L

Wheels & Tyres Rims: 8.5/1.5-20
Tyres: 12.00-20 (14.00-20 as option)
Driver's Cab Model: HW 76
Long cab, single bunk, with 4-point support suspension + shock absorbers with transverse stabilizer
Electrics Operating voltage: 24V, negative grounded
Starter: 24V, 7.5kW
Alternator: 24V, 1500W
Batteries: 2× 12V, 165Ah
"Dimensions
In mm " Wheel base 3500+1400
Front wheel track 2022
Rear wheel track 1830
Front overhang 1578
Rear overhang 700
Approach angle (0) 32
Departure angle (0) 74
Exterior Dimension (L× W× H) 7178× 2496× 3110
"Weight
In kg " Dead weight 9920
Gross vehicle weight 25000
Front axle loading capacity 7000
Rear axle loading capacity 18000
Performance Maximum driving speed (km/h) 75
Maximum gradeability (%) 48
Minimum ground clearance (mm) 314
Minimum turning diameter (m) 19
The manufacturer reserves the right of technical alteration/change for better improvement without prior notice!
