HOWO 6X4 371HP Euro 2 Emission 10-Wheel Sino Trucks

HOWO 6x4 371hp Euro 2 Emission 10-wheel SINO Trucks
Company instruction:
Jinan Shanglong International Trade Co., Ltd is located in Jinan, shandong Province, China. With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper, tractor, mixer, Cargo truck, special-using truck, semi-trailer and spare parts.

We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

More detailed technology parameters with the price, we can discuss by email or telephone carefully! Looking forward to your inquiry at any time, Thanks! You can send your requirement to my email box or call me directly! I will help you to purchase the best products!

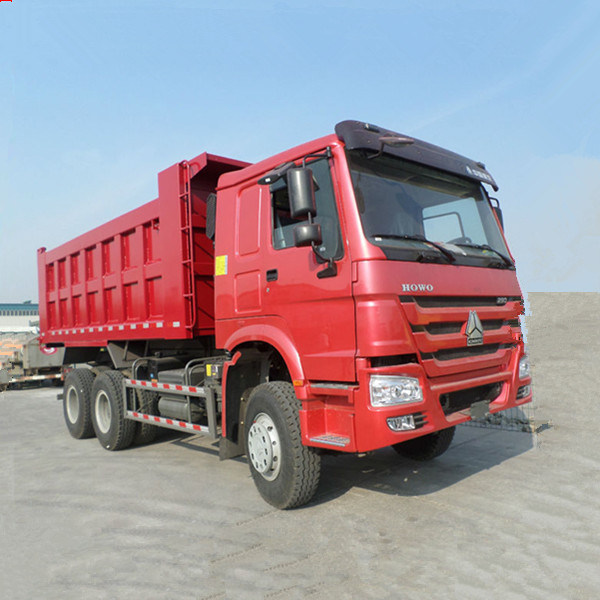

SINOTRUK HOWO 6x4 New Dump Truck ZZ3257N3647A
Place of origin: Shandong, China.
LHD OR RHD: LHD/RHD
Engine:	Model: CNHTC brand WD615.69, 336hp, euro II emission;
	Rated power: 247/2200kw/rpm;
	Max. torque: 1350/1300-1600Nm/rpm;
	Discharge: 9.726L;
	Type: 6cylinder inline, turbo charger inter cooled, 2 valves, postposition supercharger.
Transmission: HW15710, 10 speed;
Gear box		∮430 single plate dry diaphragm , hydraulically with air assist. WD615.69 with 430B;
Steering: ZF8098 hydraulic steering with power assistance;
Front axle: HF9, rated loading:9T;
Driving axle: HC16 double reduction driving axle, Ratio: 5.73;
Cab:		Model: HW70;
		Standard cabin, 0 bunk, with A/C, adjustable steering wheel, VDO panel, control module, safe-belt with 2 locks, outer sun shade.
Tyres:12.00-20 bias tyre
Brake system			Service brake: dual circuit compressed air brake
			Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: engine exhaust valve brake
Electric system: CAN bus control, voltage: 24V, alternator: 1540kw; starter: 7.5KW; battery: 12V/165Ah, 2 pcs.
Carriage Internal Dimensions: 5400mmx2300mmx1400mm;
Cargo box volume:17.39m3;
Chassis dimension: 7215x2496x2985mm;
Axle base: 3625+1350mm;
Wheelbase ( front/ rear): 2022/1850;
Min. ground clearance: 314mm;
Max. speed: 75Km/h;
Max. climbing capacity: ≥50%;
Whole truck dimensions: 8145mmx2496mmx3370mm;
Steel thickness of Carriage:Floor: 8mm, Side:4mm;
Hydraulic Lift of Carriage: Ventral lift;
Lift Cylinder Model: HG-E220×860;
English panel; Color: howo red (green, white, grey, blue, yellow);
