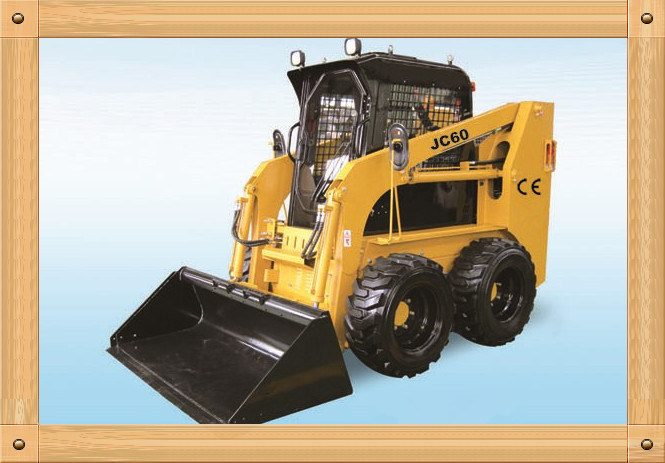

1 Ton 45kw 0.5m3 Skid Steer Loader with CE

1 ton 45kw 0.5m3 Skid Steer Loader with CECompact structure, maneuverable movement suitable for narrow space operation
Open cabin with mechanical control system
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake

Model Main technical parameter		JC60
A	Overall operating height(mm)	4000
B	Height to bucket hinge pin(mm)	3100
C	Height to top of cab(mm)	2160
D	Height to bottom of level bucket(mm)	2993
E	Overall length without bucket(mm)	2750
F	Overall length with bucket(mm)	3490
G	Dumping angle at maximum height(°)	40
H	Dumping height(mm)	2400
I	Dumping reach(mm)	750
J	Rollback of bucket on ground(°)	30
K	Rollback of bucket at full height(°)	104
L	Wheelbase(mm)	991
M	Ground clearance(mm)	205
N	Angle of departure(°)	20
O	Front turning radius without bucket(mm)	1198
P	Front turning radius(mm)	1958
Q	Rear turning radius(mm)	1728
R	Rear axle to bumper(mm)	1208
S	Tread width, centerline to centerline(mm)	1500
T	Width(mm)	1880
U	Bucket width(mm)	1880

Model	JC60
Engine model	498
Bore x stroke(mm)	98×105
Rated power (Kw)	45
Rotating speed(rpm)	2500
Number of cylinders	4
Max. torque (N.m)	193
Displacement (L)	3.168
Max. Speed (km/h)	12
Tire(track) modei	12-16.5
Operating load(kg)	850
Lifting	Arc lifting
Bucket capacity(m3)	0.5
Rated flux(L/min)	75
High Flow Flux(L/min)
Fuel tank capacity(L)	75
Self weight bucket(kg)	3200
