Jc95 with Ce 1.2ton 70kw 0.55m3 Skid Steer Mini Loader
- USD 22000.00 /Unit
- 1 Unit
- 48 Unit
- 29 days
Product Description

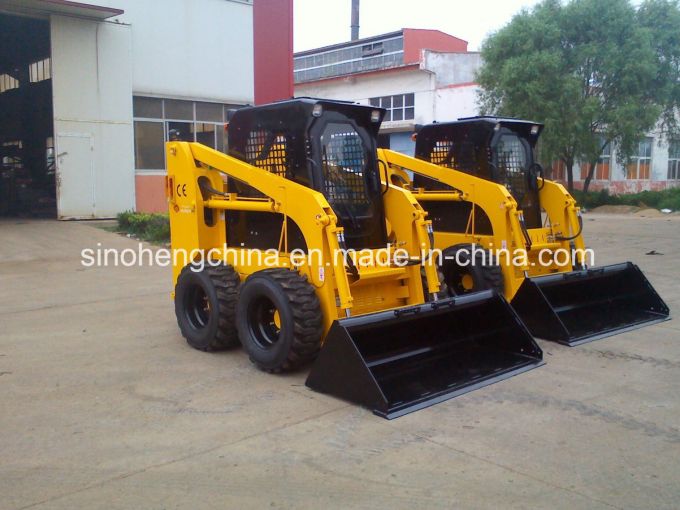

Mini Skid Steer loader JC95 with CE and Cheap Price 1.2ton/70kw/0.55m3
Power : 70KWOperation loader 1200kg
Lifting ARC lifting
Power : 70KWOperation loader 1200kg
Lifting ARC lifting
| Model | JC95 |
| Engine model | 226B |
| Bore x stroke(mm) | 106×130 |
| Rated power (Kw) | 70 |
| Rotating speed(rpm) | 2200 |
| Number of cylinders | 4 |
| Max. torque (N.m) | 380 |
| Displacement (L) | 4.5 |
| Max. Speed (km/h) | 12 |
| Tire(track) modei | 12-16.5 |
| Operating load(kg) | 1200 |
| Lifting | Arc lifting |
| Bucket capacity(m3) | 0.55 |
| Rated flux(L/min) | 88 |
| High Flow Flux(L/min) | 122 |
| Fuel tank capacity(L) | 90 |
| Self weight bucket(kg) | 3550 |
| Model Main technical parameter | JC95 | |
| A | Overall operating height(mm) | 4070 |
| B | Height to bucket hinge pin(mm) | 3150 |
| C | Height to top of cab(mm) | 2160 |
| D | Height to bottom of level bucket(mm) | 2983 |
| E | Overall length without bucket(mm) | 2880 |
| F | Overall length with bucket(mm) | 3580 |
| G | Dumping angle at maximum height(°) | 40 |
| H | Dumping height(mm) | 2450 |
| I | Dumping reach(mm) | 700 |
| J | Rollback of bucket on ground(°) | 30 |
| K | Rollback of bucket at full height(°) | 104 |
| L | Wheelbase(mm) | 1185 |
| M | Ground clearance(mm) | 205 |
| N | Angle of departure(°) | 20 |
| O | Front turning radius without bucket(mm) | 1278 |
| P | Front turning radius(mm) | 2144 |
| Q | Rear turning radius(mm) | 1857 |
| R | Rear axle to bumper(mm) | 1082 |
| S | Tread width, centerline to centerline(mm) | 1500 |
| T | Width(mm) | 1880 |
| U | Bucket width(mm) | 1880 |
