Road Roller Supplier Mini Fully Hydraulic Compactor Yzc3h

Road Roller Supplier Mini Fully Hydraulic Compactor YZC3H

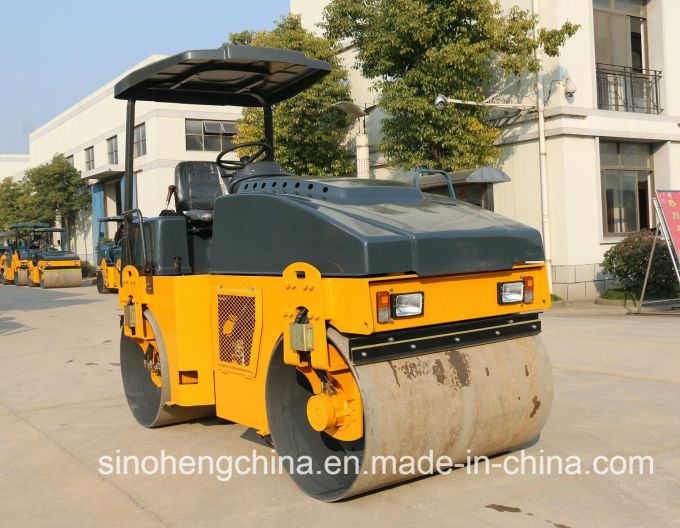

3 Ton Full Hydraulic Double Drum Vibratory Roller Applications
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement and general road base.Main Features Hydraulic rear drum drive, two ranges stepless change gear. Hydraulic vibration, Hydraulic steering and easy to operationPARKER vibration pump, motor; IKY high torque hydraulic motor; Unique trouble removing technology for brakeClose performance is extremely fine and work close building.Articulated frame and flexible steering, compact design and nice appearanceShort turning radius and flexible drive and especially in narrow job site.Large capacity, water tank with anti-corrosive glass fiber reinforced plastic, electric pressurized sprinkler.Low noise and wide-field and operate simply and drive comfortable.Choose driver's cab and trailer for four wheels according to user's requirements.The imported diesel engine of brand Kubota is optionalTechnical Data

Operating weight	3000	kg	Grade ability	30%
Diameter of vibrating drum	φ760	mm	Moving speed gear I	0-2.5	km/h
Rolling width	1200	mm	Moving speed gear II	0-7.2
Static Linear Pressure	135	N/cm	Diesel engine brand Diesel engine model Rated power	Chang chai N385Q 21KW@2400r/min
Activating force	32	KN	Hydraulic motor	Parker GM5-12
Vibration frequency	50	Hz	Double gear pump	Parker G5-16-8
Theoretical amplitude of vibration	0.62	mm	Overall dimensions L W H	2940×1300×2400	mm
