Yzc3h Full Hydraulic Double Drum Vibratory Roller 3 Ton

  • Yzc3h Full Hydraulic Double Drum Vibratory Roller 3 Ton
  • USD 1.35 /Unit
  • 1 Unit
  • 38 Unit
  • 14 days
Product Description
YZC3H FULL HYDRAULIC DOUBLE DRUM VIBRATORY ROAD ROLLER
3 Ton Full Hydraulic Double Drum Vibratory Roller Applications
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement and general road base.Yzc3h Full Hydraulic Double Drum Vibratory Roller 3 TonMain Features Hydraulic rear drum drive, two ranges stepless change gear. Hydraulic vibration, Hydraulic steering and easy to operationPARKER vibration pump, motor; IKY high torque hydraulic motor; Unique trouble removing technology for brakeClose performance is extremely fine and work close building.Articulated frame and flexible steering, compact design and nice appearanceShort turning radius and flexible drive and especially in narrow job site.Large capacity, water tank with anti-corrosive glass fiber reinforced plastic, electric pressurized sprinkler.Low noise and wide-field and operate simply and drive comfortable.Choose driver's cab and trailer for four wheels according to user's requirements.The imported diesel engine of brand Kubota is optionalTechnical Data
Operating weight3000kgGrade ability30%
Diameter of vibrating drumφ760mmMoving speed gear I0-2.5km/h
Rolling width1200mmMoving speed gear II0-7.2
Static Linear Pressure135N/cmDiesel engine brand
Diesel engine model
Rated power
Chang chai
N385Q
21KW@2400r/min
Activating force32KNHydraulic motorParker GM5-12
Vibration frequency50HzDouble gear pumpParker G5-16-8
Theoretical amplitude of vibration0.62mmOverall dimensions L W H2940×1300×2400mm
Product Images

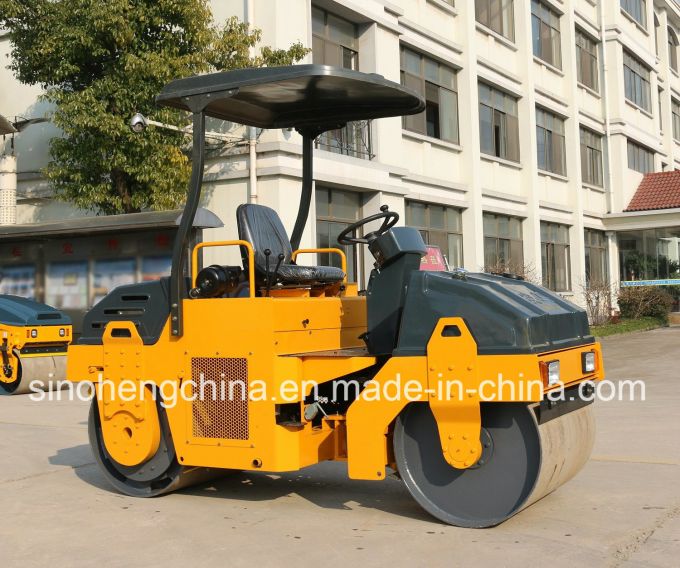

Yzc3h Full Hydraulic Double Drum Vibratory Roller 3 Ton Images 1
