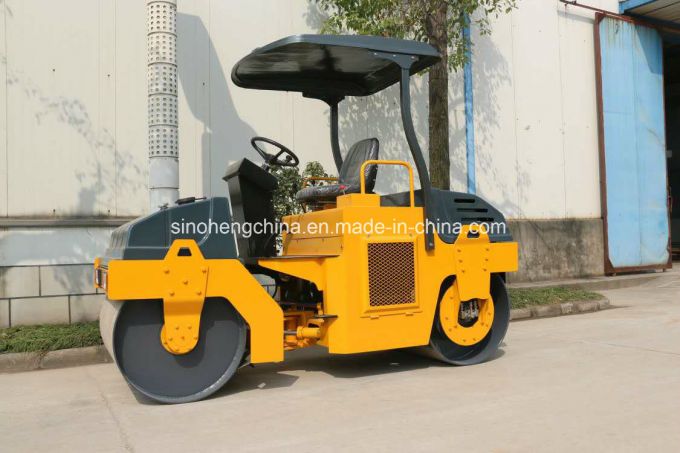

Construction Machinery Double Drum Vibratory Roller Compactor Yzc3

Construction machinery Double Drum Vibratory Roller Compactor YZC3


Road Equipment Soil Compactor Application:
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement and general road base.Main FeaturesMechanical drive, two-speed gear shift. Hydraulic vibration, Hydraulic steering and easy to operate.Articulated frame with flexible steering. Compact design and nice appearance.Equipped with gravity nature sprinkler system, or the electric control pressurized sprinkling system is optional.A trailer is provided for transportationCompacting force up to 6tScraper and sprinkling devices on all drumsTechnical Data

Operating weight	3000	kg	Theoretical amplitude of vibration	0.58	mm
Diameter of vibrating drum	φ800	mm	Moving speed gear I	2	km/h
Rolling width	1000	mm	Moving speed gear II	5.6
Static Linear Pressure	162	N/cm	Grade ability	20%
Activating force	35	KN	Diesel engine model Rated rotation speed Rated power	ZN390Q 2400 25	r/min kw
Vibration frequency	50	Hz	overall dimensions L*W*H	2990×1280×2360	mm
