500 Kg Vibratory Road Roller Jms05h

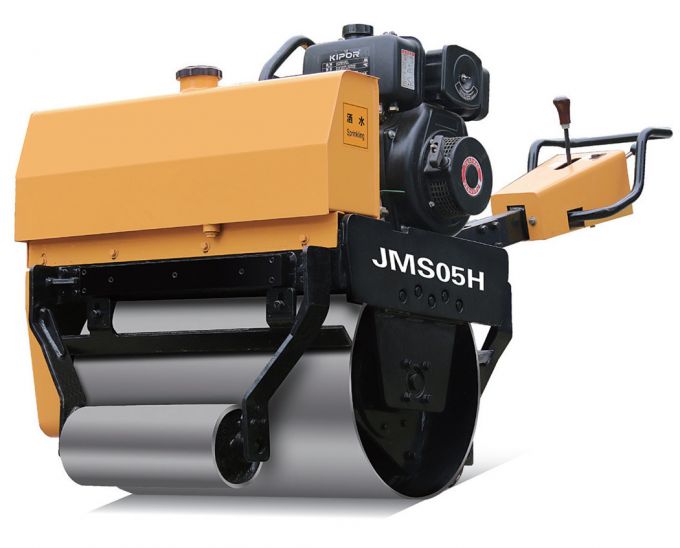

500 KG Vibratory road roller JMS05H
Application
Road, trenches, country and township roads and parking ground etc. compacting and repairing the asphalt pavement and general road base.
Main featuresimported hydraulic pump, infinitely variable speed, flexible operation with high safetyVertical vibration with great centrifugal force and high efficiency.A trailer is provided for transportationAutomatic controlled backward brake system ensure the safe operationDomestic or imported engines are optional (diesel engine or gasoline engine)Technical Data

Operating weight	500	kg	Vibration frequency	65	Hz
Diameter of vibrating drum	Φ480	mm	Theoretical amplitude of vibration	0.5	mm
Rolling width	680	mm	Moving speed range	0-2.25	km/h
Static Linear Pressure	72	N/cm	Grade ability	25%
Centrifugal force	15.2	KN	Diesel engine model Rated rotation speed Rated power	KM178F(A) 3600 4.0	r/min kw
Overall dimensions L W H	Open:2050x870x1020mm Folding: 960x870x1780mm
