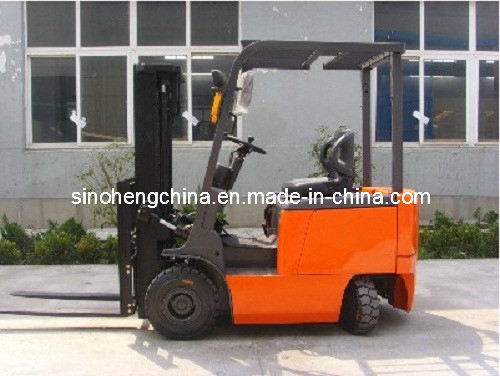

1.5 Ton Electric Forklift, Battery Forklift Truck Sh15c

1.5 ton SH15CBattery Forklift Truck , Forklift Truck Seller1. High Capacity Battery
2. Comfortable Control
3. High Performance Motor
4. High Quality Ge/curtis
Electrionic Controller
5. Safe Over-guard
6. Caution Light
7. Option AC Electronic ControlTechnical Parameters:

Product Name		1.5Tonbattery Forklift Truck
Model		SH15C
Load capacity (kg)		1500
Load center (mm)		500
Power type		Battery
Max. lifting speeds ( with load ) mm/s		285
Max. driving speeds ( with/without load ) km/h		12,5/14
Max. towing ( with/without load ) kn		6,5
Gradeability (with/without load ) %		15
Lifting height (mm)		3000
Free lift (mm)		60
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		1820
Min. right angle aisel width ( mm )		1810
Min. under-clearance (mm)		95
Dimension	Overall length (including fork)mm	2960
	Overall width ( mm )	1086
	Overall height (mast lowered )mm	2115
	Overall height (mast extend )mm	4015
Overall height to overhead guard (mm)		2115
Fork width (mm)		100
Fork thickness (mm)		35
Fork length (mm)		920(1070)
Fork overhang (mm)		436
Wheel base (mm)		1250
Tread	Front tread (mm)	900
	Rear tread (mm)	920
Tyre	Front tyre	6.50-10
	Rear tyre	5.00-8
Total weight (kg)		3050
Motor	Traction motor	XQ-5-4A3
	Lifting motor	XQD-7.5-3C
Battery	Battery type	D-440
	Battery voltage /Capacity V/Ah	48/440
