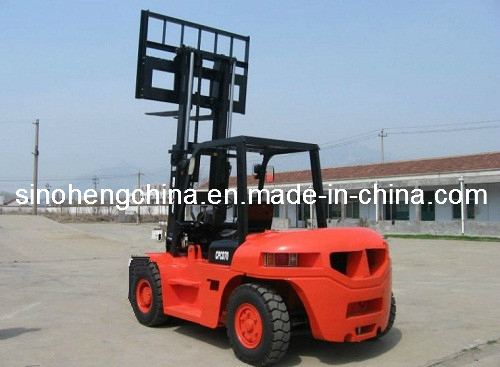

7 Ton, CE, Diesel Forklift (Cpcd70)

7 Ton, CE, Diesel Forklift (Cpcd70)
1. Powerful Engine
Engine for optional: CHAOCHAI6102-BG, ISUZU 6BG1, PERKENS 1104D-TA(EUROIII)
2. Hydraulic Gear-box
3. Control Valve
4. Steering Bridge
5. Double Front Wheel
6. Caution Light

Technical Parameters:

Product Name		7 Ton ,CE, Diesel Forklift (Cpcd70)
Model		CPCD70
Load capacity (kg)		7000
Load center (mm)		500
Power type		Diesel
Max. lifting speeds ( with load ) mm/s		440
Max. driving speeds ( with/without load ) km/h		22/26
Max. towing ( with/without load ) kn		52
Gradeability (with/without load ) %		20/25
Lifting height (mm)		3000
Free lift (mm)		210
Tilting angles ( forward-backward ) (.)		6/12
Min. turning radius (mm)		3450
Min. right angle aisel width ( mm )		3090
Min. under-clearance (mm)		230
Dimension	Overall length (including fork)mm	4800
	Overall width ( mm )	1995
	Overall height (mast lowered )mm	2500
	Overall height (mast extend )mm	4420
Overall height to overhead guard (mm)		2420
Fork overhang (mm)		632
Wheel base (mm)		2250
Tread	Front tread (mm)	1470
	Rear tread (mm)	1700
Tyre	Front tyre	8,25-15-14
	Rear tyre	8,25-15-14
Total weight (kg)		9500
Fork width (mm)		150
Fork thickness (mm)		65
Backrest height (mm)		1365
Fork length (mm)		1220
Engine	Engine model	Chaochai6102-BGQC4115G
	Rate power (KW)	80.9/85
	Rotate speed at Rate power (rpm)	2500/2300
	Max. torque (nm)	353/400
	Rotate speed at max torque (rpm)	1650/1600-1800
Battery		2-12 V/80AH
Type of power shift		Tor-non
