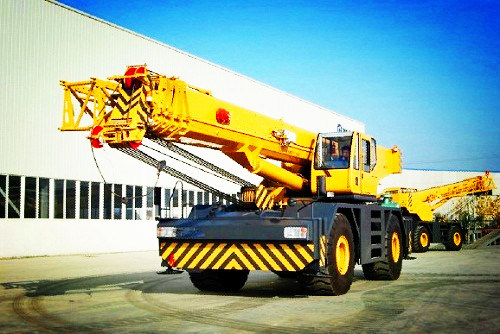

70t Rough Terrain Crane Qry70

70T rough terrain crane QRY70The rough terrain crane with high configuration , exquisite design and solid structure . we export these cranes to all the world , we also product else truck crane , Truck Mounted Crane etc . Welcome to inquire us , you will enjoy best service and competitive price .

70t QRY70 Rough Terrain Crane Main technical specifications in travel configuration
Category		Item						Unit	Specification
Outline Dimensions		Overall length						mm	12970
		Overall width						mm	3350
		Overall height						mm	3840
		Axle base						mm	4650
		Tyre tread						mm	2350
Weight		Dead weight in travel state						kg	48800
		Axle load	Front axle					kg	22560
			Rear axle					kg	26240
Travel		Max.travel speed						km/h	40
		Min. turning radius						mm	6500
		Min. turning radius for boom head						mm	12100
		Min. groud clearance						mm	530
		Approach angle						°	24.5
		Departure angle						°	24.5
		Max. gradeability						%	55
Power		Engine rated output						Kw/(r/min)	228/2100
		Engine rated torque						N.m(r/min)	1200/1000~1700
		Max. Travel speed						r/min	2100
70T Rough Terrain Crane Main technical specifications in lifting configuration
Category	Item									Unit	Specification
specifications	Max. total rated lifting load									t	70
	Min.. rated working radius									m	3
	Turning radius at swing table tail									m	4.7
	Max. Lift force			base boom						kN@m	2502
				Fully extended boom						kN@m	987
	Outrigger distance			Longitudinal						m	7.75
				Lateral						m	7.6
	Lifting height			base boom						m	10.7
				Fully extended boom						m	36.75
	boom length			base boom						m	10.2
				Fully extended boom						m	37
	Jib offset angle									°	0/30
Working Speed	elevating time				Boom raising time					s	85
					Boom descending time					s	85
	Boom Extend/ retract time				Boom fully extend time					s	125
					Boom fully retracting time					s	95
	Max.swing speed									r/min	2
	Outrigger Extend/retract time			Outrigger beam		Outrigger beam extending sychronously				s	30
						Outrigger beam retracting sychronously				s	25
				Outrigger jack		Outrigger beam extending sychronously				s	35
						Outrigger beam retracting sychronously				s	60
	Lifting speed(single rope)			Main winch			Full load			m/min	120
							Empty load			m/min	120
				Auxiliary winch			Full load			m/min	120
							Empty load			m/min	120
