CE Approved Rough Terrain Crane Qry60
- USD 200000.00 /Unit
- 1 Unit
- 42 Unit
- 15 days

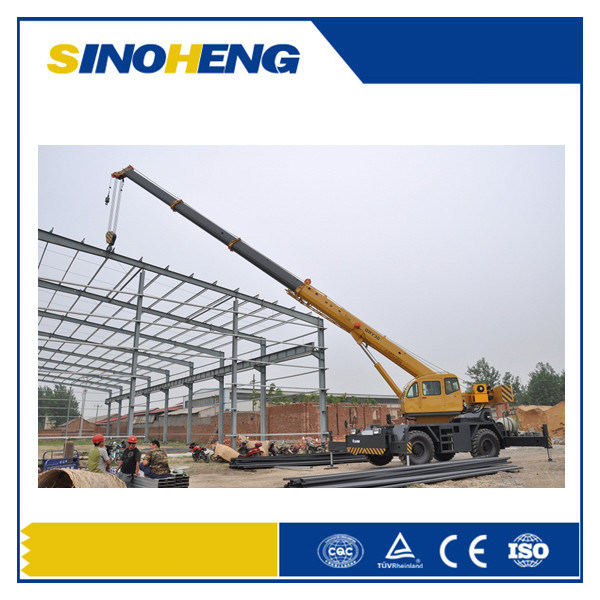

High quality 60 Ton Rough Terrain Crane QRY60 with CE and Ghost Certificate
Main Features:
1. Cummins ISDE270-30 Diesel Engine (198kW)
2. Overall dimension: 12320*3350*3807 (mm)
3. Max. total rated lifting load: 60t
4. Min. rated working radius: 3m
5. Max. lifting height (Fully-extended boom+Jib): 62.5m
6. Max. grade ability: 55%
7. Dead weight in travel state: 43000Kg
Category | Items | Unit | Parameters | ||
OutlineDimension | Overalllength | mm | 12320 | ||
Overallwidth | mm | 3350 | |||
Overallheight | mm | 3807 | |||
Axlebase | mm | 4650 | |||
Tread | mm | 2648 | |||
Weight | Deadweightintravelstate | Kg | 43000 | ||
Axleload | Frontaxle | Kg | 20710 | ||
Rearaxle | Kg | 22290 | |||
Power | Engineratedoutput | Kw(r/min) | 198/2500 | ||
Engineratedtorque | N.m(r/min) | 970/1200-1700 | |||
Travel | Travelspeed | Max.travelspeed | Km/h | 35 | |
Turingradius | Min.turningradius | m | 7.35 | ||
Min.groundclearance | mm | 480 | |||
Approachangle | ° | 24 | |||
Departureangle | ° | 24 | |||
Max.gradeability | % | 50 | |||
MainLiftingPerformanceParameters | Max.totalratedliftingload | t | 60 | |||
Min.ratedworkingradius | m | 3 | ||||
Turningradiusatswingtabletail | m | 4.5 | ||||
Max.loadmoment | baseboom | KN.m | 1850 | |||
Fullyextendedboom | KN.m | 828 | ||||
Outriggerspan | Longitudinal | m | 7.7 | |||
Lateral | m | 7.6 | ||||
Fullyextendedboom | m | 35.03 | ||||
Boomlength | baseboom | m | 9.63 | |||
Fullyextendedboom | m | 35.03 | ||||
Jibinstallationangle | ° | 0/30 | ||||
WorkingSpeedParameters | Boomluffingtime | Boomraisingtime | s | 85 | ||
Boomdescendingtime | s | 85 | ||||
Boomtelescopingtime | Boomfullyextendedtime | s | 120 | |||
Boomfullyretractingtime | s | 95 | ||||
Max.swingspeed | m/min | 2.0 | ||||
Outriggertelescopingtime | Horizontaloutriggers | Extendingsynchronously | s | 30 | ||
Retractingsynchronously | s | 25 | ||||
Verticaloutriggers | Extendingsynchronously | s | 35 | |||
Retractingsynchronously | s | 60 | ||||
Hoistingspeed(steelwireropeisatthe4thlayer) | Mainwinch | Noload | m/min | 120 | ||
Auxiliarywinch | ||||||
shipped by RORO or Bulk ship
-
