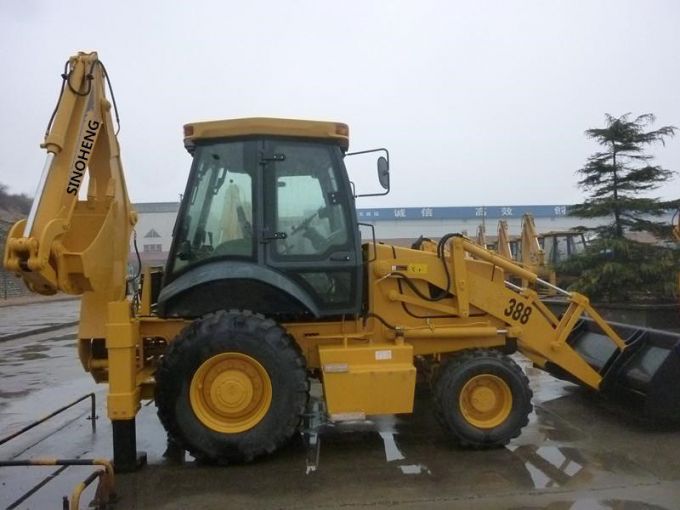

2.5 Ton Backhoe Loader for City Road Construction Sh388

2.5 ton/1m3/75kw Backhoe wheel Loader, Cummins engine SH388, backhoe loader

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.

We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.

The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.

We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

SH388 backhoe loader, adopting European technology, is featured by strong power, pilot control, comfortable operation, excellent performance and high cost performance.

TheMainPerformanceParameterofBackhoeLoaderSH388
OverallOperatingWeight	8125KG	FinalReducer	SingleStageFinalReducer
TransportDimension		RatedLoaderofAxle	4/18.5t
L*W*Hmm	5919×2217×3764	TransmissionSystem
Wheelbase	2200mm	TorqueConverter
Min.GroundClearance	300mm	Model	YJ280
BucketCapacity	1.0m3	Type	Single-stageThreeElements
BreakoutForce	38KN	Max.Efficiency	84.4%
LoadingLiftingCapacity	2500KG	InletPressure	0.4Mpa_0.55Mpa
BucketDumpingHeight	2742mm	OutletPressure	1.2Mpa_1.5Mpa
BucketDumpingDistance	1062mm	CoolingMethod	Oil-coolingPressureCirculation
DiggingDepth	52mm	Gearbox
BackhoeCapacity	0.3m3	Type	FixedShaftPowerTransmission
Max.DiggingDepth	4082mm	OilPressureofClutch	1373Kpa_1569Kpa
SwingAngleofExcavatorGrab	190o	Gears	TwoGearsAhead,TwoGearsAstern
Max.PullingForce	39KN	Max.Speed	22Km/h
Engine		Tyre
Model	CUMMINS4BTA3.9_C100	Model	14-17.5/19.5L-24
Type	InLineDirectinjectionFour-StrokeandInjectionCombustionChamber	PressureofFrontwheel	0.22Mpa
Cylinder-InsideDiameter*Stroke	4-102×120	PressureofBackWheel	0.22Mpa
RatedPower	75KW	BrakeSystem
RatedSpeed	2200r/min	ServiceBrake	AirOverOilCaliperBrake
Min.FuelConsumption	≤216g/km.h		ExternalType
Max.Torque	≥410N.M/1500r/min		Self-regulation
Displacement	3.9L		Self-balance
SteeringSystem		EmergencyBrake	OperationPowerImplementingbrake
ModelofSteeringDevice	BZZ5-250		ManualOperationPowerTerminatingBrake
SteeringAngle	±36o	HydraulicSystem
Min.turningradius	6581mm	DiggingPowerofExcavatorGrab	46.5KN
Pressureofthesystem	12Mpa	DiggingPowerofDipper	31KN
Axle		BucketLiftingTime	5.4S
Manufacturer	FeichengAxleFactory	BucketLoweringTime	3.1S
MainTransmissionType	DoubleReduction	BucketDischargeTime	2.0S
Theparametersaresubjecttochangewithoutnotice
