2016 New Model Az22-10 Backhoe Loader for Sale

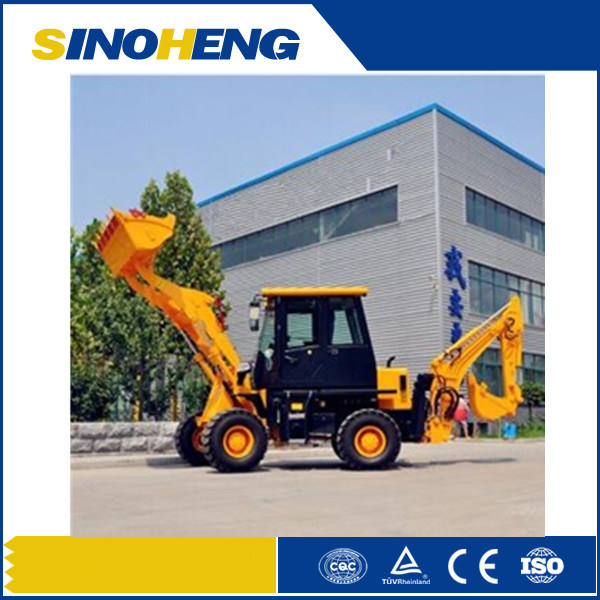

2016 New Model AZ22-10 Backhoe Loader for Sale
Mini agricultural machinery mini loader with high quality and low price , good working performances, has been exported to many countries , and very popular by our customers .
AZ22-10 backhoe loader technical parameters as follows ,

Model	AZ22-10
Overall dimension	7000x1850x2680mm
Loading bucket capacity	0.7m³
Rated load	1200kg
Operate weight	4560kg
Digging bucket capacity	0.1m³
Max. digging height	3600mm
Max. digging depth	3025mm
Loadign bucket Max breakout force	32 K.N.
Digging bucket max. breakout force	26K.N.
Max gradability	25°
Min.turning radius	5800mm
wheel base	2225mm
Total cycling time	≤11s
Dumping height	2750mm
Dumping distance	1800mm
Engine
Model	yunnei 4100
Form:	inline,water cooling,4 strok, direct inject
Rated power/speed	65kw/2000rpm
Max. Toqure	224 K.N.
Transimission system
Converter model	240
Gearbox pattern	hydraulic transmission
Gear shifts	2 forwards,2 reverse
Max speed	25 kw/h
Front and rear axle	4x4 drive, front axle fixed, rear axle swing
Steering system
Pattern	articulated, full hydraulic
steering angle	30°
Hydraulic system
Working pressure	16Mpa
operated type	hydraulic pilot
Braking system
Service brake	gas cap oil
Park brake	hand operated caliper disc
Tyre
Size	23.5/70-16
front/rear tyre pressure	0.35/0.35Mpa
