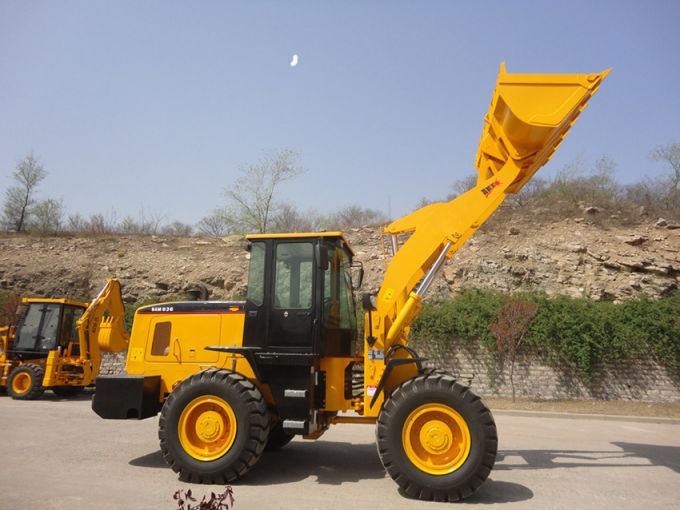

3 Ton /1.7m3/2.5m3/92kw Wheel Loader, Loaders (836)

3 ton /1.7M3/2.5M3/92KW Wheel Loader, Loaders(836)

SINOHENG Wheel Loaders, Loading capacity ranges from 1.6 ton to 6.0 ton including popular models ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.
We have a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia.
The company has powerful technical and manufacturing strength, which has introduced, digested and absorbed lots of domestic and foreign advanced technology.
We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

performance	3.0 Ton Wheel Loader 836
	1	rated loading	3000kg
	2	overall weight	9600kg
	3	rated bucket capacity	1.7-- -2.5m 3
	4	maximum tractive force	97KN
	5	maximum breakout force	127KN
	6	maximum grade ability	30
	7	maximum dump height	3100mm
	8	maximum dump reach	1006mm
	9	overall dimension (L × W × H)	6890 × 2430 × 3070mm
	10	minimum turning radius	5097mm
Engine	11	model	yuchai YC6B125-T20 (Optional: Deutz TD226B-6 )
	12	type	lnline water cooled, four stroke
	13	No. of cylinder-bore/stroke	6 _ 108 × 125mm
	14	rated power	92kw
	15	maximum torque	500N.m
	16	min fuel-consume ratio	≤ 210g/kw.h
Transmission system	17	torque converter	YJ315 _ x
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4forward shift 2 reverse shift
	20	maximum speed	40km/h
Drive axles	21	main reducing mode	Bevel gear grade lreduction
	22	decelerating mode	Bevel gear grade lreduction
	23	wheel base (mm)	2660mm
	24	wheel tread	1800mm
	25	ground clearance	400mm
Hydraulic system	26	system working pressure	16.5MPa
	27	boom lifting time	4.83s
	28	total time	9.15s ± 0.5s
	29	fuel tank capacity	156L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
	32	parking brake	Manual disk brake
Tyre	33	type specification	17.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
