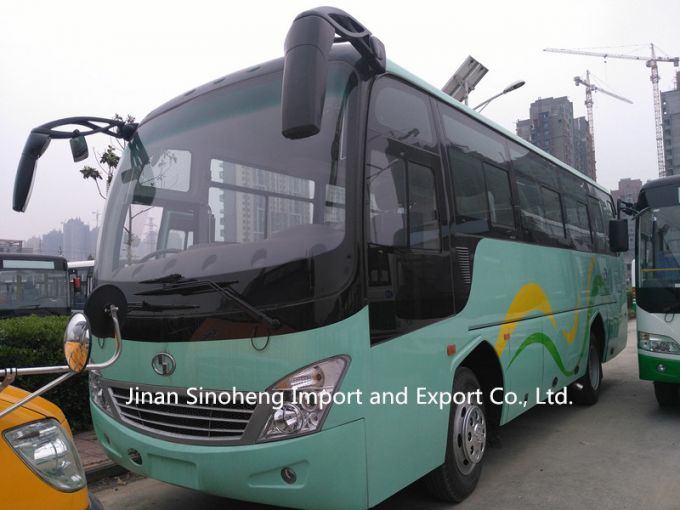

Shaolin 37-40seats 8.4m Front Engine Bus

Shaolin 37-40seats 8.4m front engine bus
Smart and magnificent design
This model is equipped flexible control system with comfortable large space which provide a incomparable experience during driving. Insist the principle of cost efficient, spare parts commonality effectively reduce the use and maintenance cost.
TECHNICAL data:

ITEM		SLG6840C3E
DIMENSION	LENGTH×WIDTH×HEIGHT(MM)	8440×2450×3350
	Tread F (MM)	1950
	Tread R (MM)	1800
	WHEELbase (MM)	4000
WEIGHT	TOTAL MASS (KG)	9800
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	16512
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEAT CAPACITY		37-40 seats
frameWORK		STRAIGHT BEAM
ENGINE	MODEL	EURO 2 CUMMINS ENGINE EQB160-20/118KW EURO 2 YC4E150-20/110KW EURO 3 CUMMINS ENGINE ISDE 160-30/118KW EURO 3 YC4E160-30/118KW
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	118KW
	MAX. TORQUE (N.M)	600/600/600
	EMISSION STANDARD	EURO II/EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITH PUMP
TRANSMISSION	MODEL	ZF TECHNOLOGY QIJIANG QJ5S600
	MAX. TORQUE	600
	SHIFTS	5 SPEED MANUAL/6 SPEED MANUAL
	ConTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		4.2T
REAR AXLE		6.8T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ф400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		135L

Packaging&Shipping :
Nude Packing by RO-RO ,Bulk Cargo Ship or frame box sea shipping ,can according to client's requirements .
Delivery Time :15-20 days of working ,after the seller receive the buyer's deposits .
Payment Terms:30% TT as deposits before produce and 70% TT before shlpment .or 30%TT beforeproduce and 70% LC at sight .or 100% LC at sight .
For more informations ,please feel free to send inquiry to us ,we will reply you at our first time within 24 hours .
