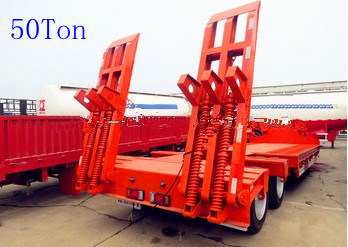

50ton Low Bed Semi Trailer in Truck Trailer

50Ton lowbed semi truck trailer:
1.6 years export experience
2. Capacity 30T-100T
3. JOST, WABCO parts

Gross Weight: 13000mm*3000mm*1270mm(working height)
Outer side dimension(mm): 13000mm*3000mm*1270mm(working height)
Loading Capacity (Ton): 30-100 ton

Main beam:
Height: 500mm, upper plate is 20mm, middle plate is 12mm, down plate is 20mm side beam is 25mm

Outer side dimension(mm):
13000mm*3000mm*1270mm(working height)

Low bed semi trailer	Standard specification
Gross Weight	11-13 tons
Outer side dimension(mm)	13000mm*3000mm*1270mm(working height)
Loading Capacity (Ton)	30-100 ton
AXLES	13 T or 16T , 3 AXLES
Tire	11.00R20 12pieces or optional
Rim	8.00_20 12pieces or optional
Suspension	mechanical suspension
Spring leaf	10 pieces, intensify
King pin	JOST brand 2.0" or 3.5"
Support leg	JOST brand D200T
Ladder	A pair of ladder
Main beam	Height: 500mm, upper plate is 20mm, middle plate is 12mm, down plate is 20mm side beam is 25#
Platform	4mm diamond platform
Brake chamber	4 double and 2 single chambers
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m*0.5m*0.5m
