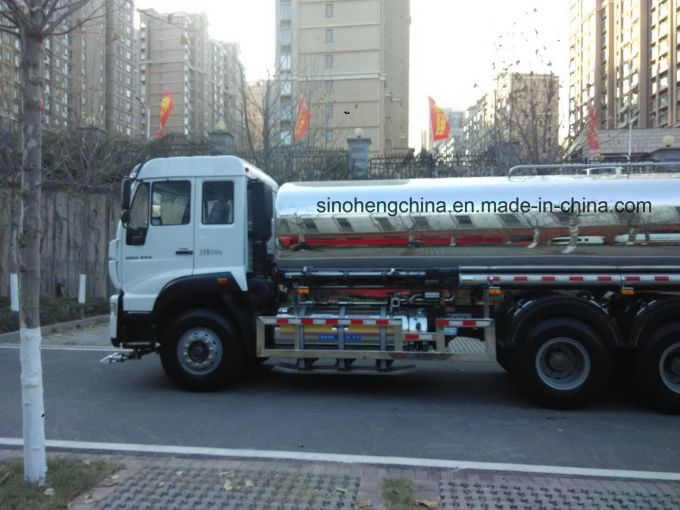

2017 Sinotruk 6X4 25cbm Water Truck

1, Broad select range of tonnage of tank from 18.8 to 27.5 CBM.
2, The multle wve resisting clapboards in the tank provide high safety.
3, All raw materials adopt high quality GB steel produced.
4, NC automatic welig of tank body achieves reliable welding quality and pleasing appearance.
5, Baking finish achieves high radiance, high adhesion, strong weather resistance, ore pleasing appearance and a long service life.

Model	JYJ5312GYY
Chassismodel	ZZ1317N4667C1
Drivingform	8x4
Totalmass(kg)	31000
Curbweight(kg)	12530
Engine	WD615.47(371HP),EuroIIemissionstandard
	Enginetype:Diesel4strokedirectinjectionengine,
	6cylinderinlinewithwatercooling,turbo-charging&intercooling
Cab	HW76(onebedwithA/C)
Transmission	HW159710(10Forward,2Revise)
Frontaxle	HF7(7000kg)
Drivingaxle	HC16(16000kgx2)
Steeringsystem	ZF8098
Tire	12.00R20(11pcs,includingonesparetire)
Wheelbase(mm)	1950+4600+1350
Front/rearOverhang(mm)	1540/2490
Approach/departureangle	15/20
Maximumspeed(km/h)	75
