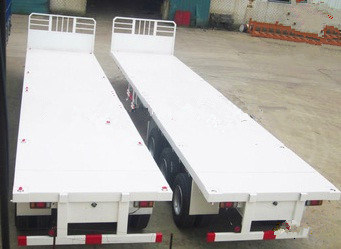

3 Axle Flatbed Semi Trailers for Sale

3 axle flatbed semi trailers for sale, the following specifications just for your reference:

3 axle flatbed semi trailers for sale, is made from the standard steel -Q345, and Q235. frame beam is well welded by the submerged machine and polished by the shot blasting machine, so the quality is guaranteed at the very start. For export, we use the famous brand parts, such as JOST brand kinpin and landing legs, WBACO braking valve.

1. Ship by container, less cost
2.12 month quality guarantee

Tare Weight	6.1T-7.6T
Dimension	12450×2490×1575(adjustable)
Loading Capacity	40T-60T
Axle	13T/16T, FUWA/BPW/Huajing Brand
Rim	9.00-22.5 flatbed trailer
Tire	12R22.5/315/80R22.5
Suspension	Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand) flatbed trailer
Spring leaf	90(W)×13(Thickness)×10(Layer) or 100×12×12mm
King pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legs	JOST brand D200T or China brand 28Tons(double speed)
Main beam	Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate thickness is 16mm; Material is Q345 Carbon Steel.
Side beam	16mm or 18mm channel steel(Material is Q235steel)
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(Lifting Type or Twist Screw Type)
Valve	WABCO valve flatbed trailer
Light	LED light
Voltage	24V
Receptacle	7 ways(7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
Shipping Terms	By bulk cargo carrier, RORO or 40HQ container
