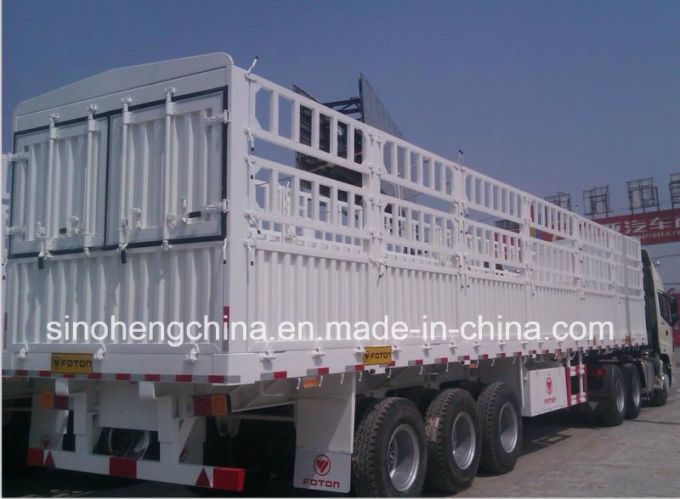

13m Storage Grid Semi-Trailer Supplier

13m Storage Grid Semi Trailer for truck1. Profesional semi trailer manufacturer
2. Good quality, competitive price, best post-sale service
3. The design of these products, according to requirements of customers.
For buy a good semi trailers and a low price trailers, please you inquiry us and buy it from us.Believe that you will buy traiers that you like.

Product Name	Storage Transport Semi Trailer
Model	STY9401CLX	STY9402CLX	STY9403CLX	STY9405CLX	STY9406CLX
No. of Axle	3	3	3	3	3
Outside Dimension L*W*H(mm)	13000/12500 *2500*3350/ 3550/3750/3950	13000*2500 *3860/3660/3460	11500/11000 *2500*3380/ 3580/3780	13000*2500 *3380/3580/ 3780/3980	13000*2500 *3120/3320/ 3520/3720
Inner/Cargo Room Dimension L*W*H(mm)	12850/12350 *2300*600	12850*2290*600	11300/10800 *2300*600	12850*2300 *600	12850*2300 *600
Rated Loading Capacity	31,3(tons)	32,5(tons)	32(tons)	33,5(tons)	33,2(tons)
Total Weight	8,5(tons)	7,4(tons)	7,98(tons)	6,5(tons)	6,8(tons)
Wheelbase(mm)	6560+1310+1310 6460+1310+1310	6760+1310+1310	5660+1310 +1310 5460+1310 +1310	6560+1310 +1310	6560+1310+1310 6868+1310+1310
Tire Type	11,00R20 12,00R20	11,00R20 12,00R20	11,00R20 12,00R20 11,00-20 12,00-20	11,00R20 11,00-20 11R22,5	11,00R20 11,00-20 11R22,5
Note	From bottom to top of the stake is 2400, 2200,2000, 1800mm ,Can be choose gooseneck type	From bottom to top of the stake is 2200mm,2000mm, 1800mm , This is gooseneck model .	From bottom to top of the stake is 2200mm,2000mm, 1800mm .	From bottom to top of the stake is 2400mm,2200mm, 2000mm, 1800mm	From bottom to top of the stake is 2400mm,2200mm, 2000mm,1800mm .
