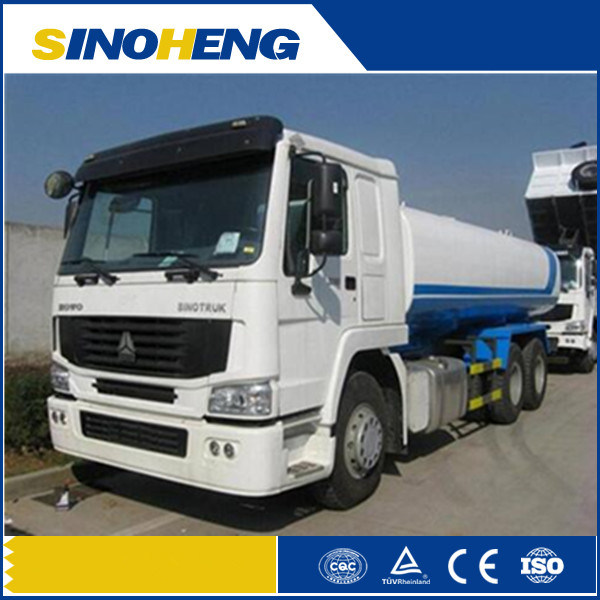

Sinotruk 20m3 Water Tanker Truck 15000L

SINOTRUK 20m3 Water Tanker truck 15000LIt is produced by China top brand SINOTRUK , has been exported to overall the world , its quality and excelent price have been very popular by our customers . In addition to , we could according to your requirements to produce the Water Truck , if you have interest in our water tanker truck , please feel free to contact with us at any time !

Dimension(Lx W xH)(unloaded(mm)					9895×2496×2958
Tanker volume(m³)(m³)					20m3 Tank body(thickness):5mm,material:carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment
Approaching angle/Departure angle(°)					13.5/11.5
Overhang(front/rear) (mm)				1500/2445
Wheel base (mm)				4600+1350
Max speed(km/h)				75
Curb weight(kg)				12400
Rated Loading Weight(kg)				12450
Engine (Steyr technology, made in China)	Model			WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,directly injection
	Fuel type			Diesel
	Horse Power, max(kw/rpm)			290HP
	Emission			EURO 2
Fuel tanker capacity (L)				300
Transmission		Model		HW15710, 10 forward, 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
Steering system		Model		ZF8098
Front axle		HF7 , Steering with double T-cross section beam
Rear axle		HW12
Color		White,Red,Yellow. According to the customer
Tyre		11.00-20
Tanker volume		15000L
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HOWO76 cab, (single sleeping, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
