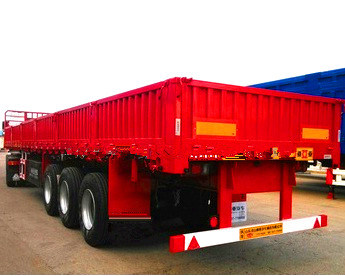

Side Wall Cargo Semi Trailer 50t

Side wall cargo semi trailer, 1000mm height side wall cargo semi trailer:
1.6 years export experience
2.12 month quality guarantee
3. Loading: 30tons to 80tons
4. Carry container, bulk cargo

Type	Drop side semi trailer
Weight:
Tare Weight	4500kg--8000kg
Loading Capacity	30T--60T
Axle Weight Load	13T/16T
Specification:
Axle number	Two or Three
Axle specs.	FUWA or BPW Brand
Suspension	Common mechanical
Wheel	11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand
King Pin	JOST 2.0" or 3.5" traction pin
Dimensions (LxWxH)	12450×2500×1490mm,13000*2490*1450/1575/2770mm
Support legs	28Tons (Tongyada Brand)/Jost D200T
Rim	8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand
Wheelbase	5980+1300/6680/6260+1310+1310mm,
Steel Spring	10/10/10 pieces per axles
Tire:
Number of Tire	can be choose freely
Spare Tire Carriers	2/4 pieces
frame: (specs. and materials)
The material of Main beam	The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm.
Side board	The height is from 600-1500mm ,
Platform plate	3mm Diamond Plate
Brake:
Brake	Kemi Brand of China
Brake Chamber	Four double and two single chamber( TKL brand )
