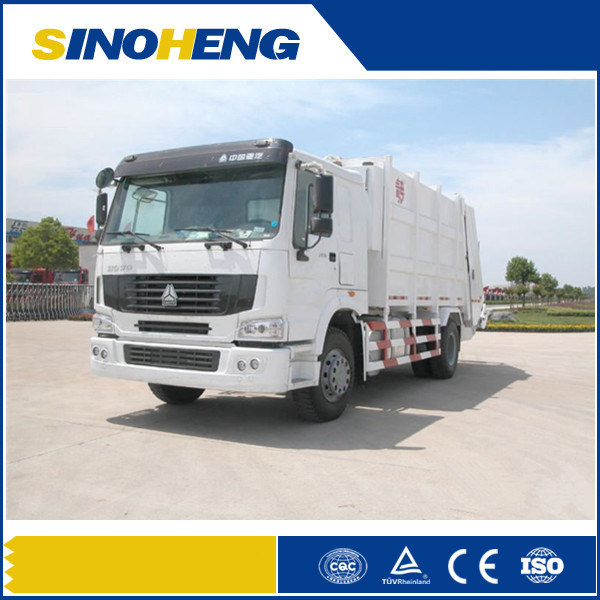

Sinotruk Heavy Duty 16cbm Garbage Compactor Truck

Properties and Applications:
Compressed Garbage Truck is produced by using Germany technology, and has outstanding techniical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic degrees, quick loading speed, covenient, safe and reliable operation, and hasn't secondary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed garbage truck uses compartment and truck separation, is equipped with several compartment for one truck, and can be used as small garbage transfer station.

Model	JHL5250ZYS
Chassis model	ZZ3257M3247C
Driving form	6x4
Total mass(kg)	25000
Curb weight(kg)	14540
Engine	WD615.87(290HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling
Cab	HW76(one bed with A/C)
Transmission	HW15710(10 Forward, 2 Revise)
Front axle	HF7 (7000kg)
Driving axle	HC16 (16000kg x 2)
Steering system	ZF8098
Tire	12.00R20 (11pcs, including one spare tire)
Wheelbase(mm)	3250+1350
Front/rear Overhang (mm)	1500 / 2250
Approach/departure angle(°)	19 / 14
Maximum speed(km/h)	75
Number of spring leaf	10/12
