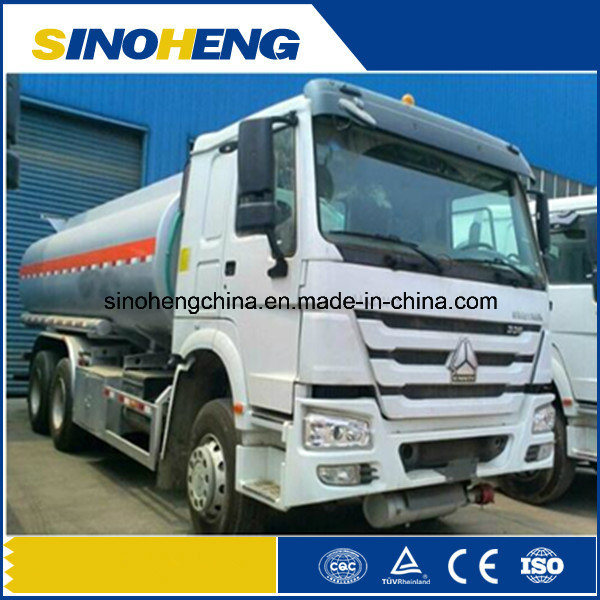

20000L (20m3) Sinotruk HOWO 6X4 Fuel Tanker Truck for Oil Transportation

20000L SINOTRUK HOWO 6x4 Fuel Tanker Truck for Oil TransportationOur Vehicle produces Oil Tanker Truck , fuel Tanker truck , petrolem tanke truck, which are according to European standard, API device. now our Vehicle produces the fuel tanker trailer from 3000 to 35000 liters to meet customer's specific requirements.


Advantages:
1. Independen separated compartments, can load materils, pump-in , Pump- Out with oil meter or without. Downgrade flow with oil meter or without. Thermal heating device is optional.
2. Lingt weight design, high-quality tank material, capacious, high transport effciency , high safety.
3. Alumunum alloy tube, no pollution to oil .
4. Bottom-mount options: oil vapor recycle system, anti-overflow system.
5. Reasonable matching, stable quality, reliable prefromance, high performance cost ratio .
Technical Parameters of 20m3 Fuel Tanker Truck :

20M3 HOWO 6X4 Fuel Tanker Truck with Flat Cab 336 HP
Cab	Model	HW76
	Driving type	Left hand drive(RHD optional)
	Type	Flat roof cab with one sleeper bed, with A/C
Engine	Model	WD615.69
	Max. output	247KW/2200rpm(336hp)
	Max torque	1350Nm/1300-1600rpm
	Displacement	9.726 L
	Type	Inline 6 cylinder with water cooling supercharged inter cooling .
Clutch	Φ430 diaphragm spring clutch, hydraulic control air power assisted . Standard 430B for WD615.69
Transmission	HW19710, 10 speeds
Front axle	HF7 drum type, 7 tons
Driving axle	ST16 Single reduction axles, 16 tons
Suspension	Front and rear suspension are leaf springs. Front suspension has shock absorbers and horizontal stabilizer, and rear suspension type is the suspension with lateral stabilizer
Steering	ZF8098
Brakes	Service brake : dual-circuit pneumatic brake ; Parking brake : energy storage spring cutoff brake ; Auxiliary brake : engine exhaust brake; EVB,ABS and automatic slack adjuster optional
Wheel & tires	12.00R20 (11.00R20 is optional),10+1 spare
Fuel tank	400 L
Weight in kg	Curb weight		11000
	Gross vehicle weight		25000
	Rated loading capacity		13870
Dimension in mm	Overall dimension		9800 X 2496 X 3048
	Wheel base		4300+1400
	Front/rear wheel track		2022/1850
	Front/rear overhang		1500/2625
	Approach/departure angle		16 / 15(°)
	Min. ground clearance		267
Performance	Max. speed		102 km/h
	Max. grade ability		50 %
	Min. turning diameter		19 m
Tank body	Tank body size(mm)		10300x2550x3100
	Capacity		20 CBM
	Thickness of tank body(mm)		5mm
	Main equipments		Fuel pump(oil pump),flowmeter
	Options		Oil feeding machine and reels(extra costs)
