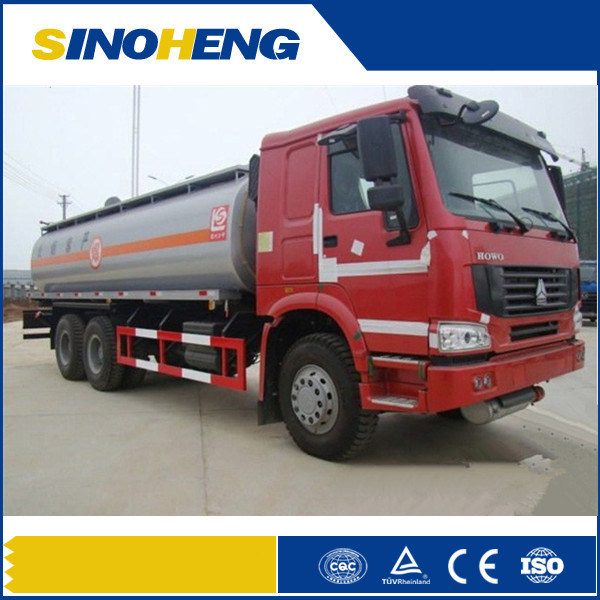

Sinotruk Diesel Tank Fuel Tank Truck for Sale

Features:
1, Broad select range of tonnage of tank from 18.8 to 27.5 CBM.
2, The multle wve resisting clapboards in the tank provide high safety.
3, All raw materials adopt high quality GB steel produced.
4, NC automatic welig of tank body achieves reliable welding quality and pleasing appearance.
5, Baking finish achieves high radiance, high adhesion, strong weather resistance, ore pleasing appearance and a long service life.

Model	JYJ5312GJYD
Chassis model	ZZ1317N4667C1
Driving form	8x4
Total mass(kg)	31000
Curb weight(kg)	12530
Engine	WD615.47(371HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling
Cab	HW76(one bed with A/C)
Transmission	HW159710(10 Forward, 2 Revise)
Front axle	HF7 (7000kg)
Driving axle	HC16 (16000kg x 2)
Steering system	ZF8098
Tire	12.00R20 (11pcs, including one spare tire)
Wheelbase(mm)	1950+4600+1350
Front/rear Overhang (mm)	1540 / 2490
Approach/departure angle(°)	15 / 20
Maximum speed(km/h)	75
Number of spring leaf	10/12
