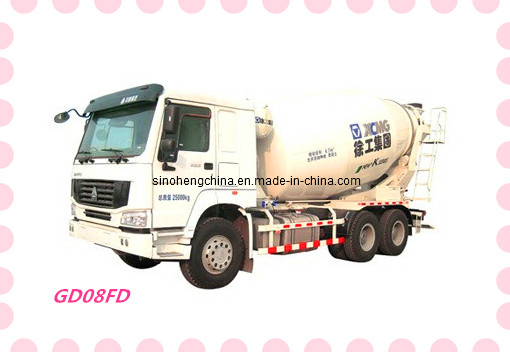

Good Quality Mixer Truck HOWO Concrete Vehicle

Ford Mixer truck, concrete mixtruck, concrete vehicle,
Feature:

Rotational speed: 0~14r/min
Feed rate: ≥ 3m³ /min
Rest rate: <0.7%

We are the professional manufacture of Concrete transportation in China, We have a yearly production capacity Of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia. We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.

We can also offer:
Concrete mixer of 6/8 suqares
G06ZZ
G06ZZ
G08ZZR
GD08FD
GD10FD

Concrete mixer of 9/10 squares
G10SX
G10ZZ
G10NX
G10NX1
G09SX
G09ZZ
G09NX
G09ZZAL

Concrete mixer of 12 suqares
G12CA
G12DF
G12NX
G12SQL
G12SX
G12ZZ
G12ZZL


Concrete mixer of 14/16 suqares
G16SX
G16NX
G16ZZ
G14ZZM
G14ZZ
G14SQ

Concrete mixer of 15 suqares
G15SX
G15ZZ


Our Advantage:
We can offer the following guarantee
1. Competitive price with perfect quality
2. Quick delivery time
3. The most influential manufacture in China
4. Quick and easy. After-sales service


If the products can satisfy your need, please feel free to contract me so that we can discuss the detail information, thank you.

ype	Model	Unit	GD08FD
Performance of mixing drum	Geometric volume	m³	14.3
	Mixing volume	m³	8
	Maximum diameter of drum body	mm	2280
	Length of mixing drum	mm	4624
	Angle of inclination	°	13
	Rotating speed	r/min	0~14
	Charge speed	m³/min	≥3
	Discharge speed	m³/min	≥2
	Residue ratio of discharge	%	<0.7
	Range of slump	cm	5~21
Hydraulic system	Oil pump		international brand
	Motor		international brand
	Reduction gears		international brand
	Hydraulic circuit		Closed type
Water supply	water tank capacity	L	450
	Way of water supply		Pneumatic
Complete machine	Brand of chassis		Ford
	Chassis model		Cargo 2629
	Type of driving		Left-hand drive
	Curb weight	kg
	maximum gross weight	kg	2300
	Type of drive		6×4
	Wheel base	mm	3440+1360
	Tyre		12.00R20
	Means of power takeoff		Power takeoff by flywheel
	Notice model
	External dimensions	(length×width×height)mm	8680×2455×3920
Engine	Model		Cummins ISB6.7
	Rated power	Kw/r/min	213
	Displacement	L	6.693
	Emission standard		Euro V
