Dongfeng 5 Ton Truck Mounted Crane 5000 Kgs

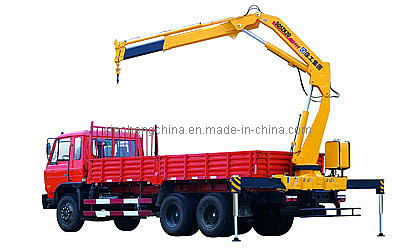

Dongfeng 5 Ton Truck Mounted Crane (SQ5ZK2Q/SQ5ZK3Q)
Dongfeng truck mounted crane inherits the "safety, environment-friendly, reliability and taking the lead" design and production concept. We provides specific solutions in accordance with customers' demand with its advanced technology. Dongfeng truck mounted cranes are widely used in shipping, railway and non-excavating industry by transformation design and extension. It is much adored by customers in different industries. Its market rate is continuously rising and stably ranks first in China.
10Max Lifting Moment.510.5t. M
Max Lifting Capacity 5000kg
Recommend Power Needed At Recommend Oil Flow18kw
Max Oil Flow of Hydraulic System25L/min
Rated Pressure Of Hydraulic System28MPa
Oil Tank Capacity 90L
Rotation Angle(360° )All Rotation(360° )All Rotation.
Crane Weight2011/2117kg
Installation Space1050mm
Choice of ChassisCA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5121GFJ; EQ5201GFJ6; HN1310P29D6M3J; NXG1160D3ZAL1X;

Model	SQ5ZK2Q	SQ5ZK3Q	Unit
Max Lifting Moment	10.5	10.5	t.m
Max Lifting Capacity	5000	5000	kg
Recommend Power Needed At Recommend Oil Flow	18	18	kw
Max Oil Flow of Hydraulic System	25	25	L/min
Rated Pressure Of Hydraulic System	28	28	MPa
Oil Tank Capacity	90	90	L
Rotation Angle	(360°)All Rotation	(360°)All Rotation	.
Crane Weight	2011	2117	kg
Installation Space	1050	1050	mm
Choice of Chassis	CA1140PK2L3EA80;DFL1140B;EQ1126KJ1;HFC1132KR1K3;LZ1120LAPT;EQ1141NBJ2;EQ5121GFJ;EQ5201GFJ6;HN1310P29D6M3J;NXG1160D3ZAL1X;

SQ5ZK2Q Lifting capability diagram
Working radius (m)	2.1	4.44	6.2	8.01
Lifting capacity (kg)	5000	2400	1600	1050

SQ5ZK3Q Lifting capability diagram
Working radius (m)	2.1	4.54	6.3	8.11	9.92
Lifting capacity (kg)	5000	2400	1600	1050	700
