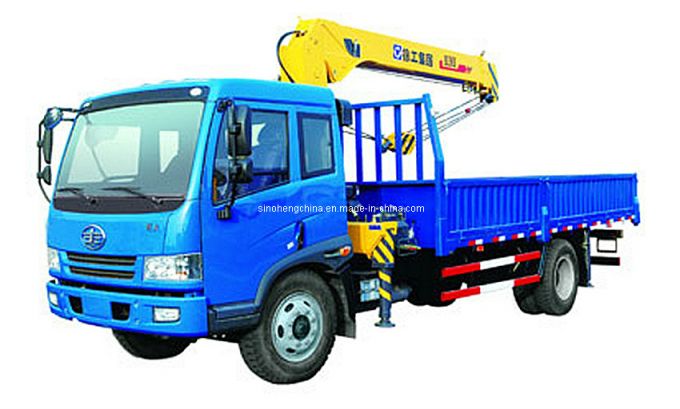

FAW 6 Ton Truck Mounted Crane (SQ6.3SK2Q/ SQ6.3SK3Q)

FAW 6 Ton Truck Mounted Crane (SQ6.3SK2Q/ SQ6.3SK3Q)
FAW truck mounted crane inherits the "safety, environment-friendly, reliability and taking the lead" design and production concept. We provide specific solutions in accordance with customers' demand with its advanced technology. Our truck mounted cranes are widely used in shipping, railway and non-excavating industry by transformation design and extension. It is much adored by customers in different industries. Its market rate is continuously rising and stably ranks first in China. Truck mountedcrane can be applied to forestry and animal husbandry. For grasping the wood.

Max Lifting Capacity6300kg
Max Lifting Moment15.7T. M
Recommend Power20kw
Max Oil Flow of Hydraulic System40L/min
Max Pressure of Hydraulic System20MPa
Oil Tank Capacity90L
Rotation AngleAll Rotation
Crane Weight2117/2270kg
Installation Space900mm
Choice of ChassisCA1163P7K2L3E; CA1176PK2L9T3A95; CA1170PK2L7T3EA80; CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1X;

Model	SQ6.3SK2Q/SQ6.3SK3Q	Unit
Max Lifting Capacity	6300	kg
Max Lifting Moment	15.7	T.M
Recommend Power	20	kw
Max Oil Flow of Hydraulic System	40	L/min
Max Pressure of Hydraulic System	20	MPa
Oil Tank Capacity	90	L
Rotation Angle	All Rotation
Crane Weight	2117/2270	kg
Installation Space	900	mm
Choice of Chassis	CA1163P7K2L3E;CA1176PK2L9T3A95;CA1170PK2L7T3EA80;CA1140PK2L3EA80;DFL1140B;EQ1126KJ1;HFC1202KR1K3;EQ1141NBJ2;EQ5161GFJ7;BJ1317VNPJJ-S5;EQ5201GFJ6;LZ1160LCMT;DFL1250A9;BJ5317ZNPJJ-S;NXG1160D3ZAL1X;

SQ6.3SK2Q Lifting capability diagram
Working radius (m)	2.5	3.82	6.17	8.5
Lifting capacity (kg)	6300	2900	1600	1200

SQ6.3SK3Q Lifting capability diagram
Working radius (m)	2.5	3.96	6.3	8.6	11
Lifting capacity (kg)	6300	2800	1600	1200	600
