Mini Truck with Double Seat
- USD 1.00 /Unit
- 1 Unit
- 50 Unit
- 27 days
Product Description
| Model |
| |||
| Cabin | 1500mm, double seat | |||
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 4930×1610×1930 | ||
| Dimensions of the cargo body (LxWxH)mm | 2440×1500×320 | |||
| Driving type | 4×2 | |||
| Wheel base (mm) | 2600 | |||
| Wheel track (front/rear) (mm) | 1271/1180 | |||
| Min. ground clearance (mm) | 150 | |||
| Weight data | Curb weight (kg) | 1360 | ||
| Rated payload(kg) | 1500 | |||
| Persons in cab (persons) | 2+3 | |||
| Gross vehicle weight(kg) | 3185 | |||
| Whole vehicle main performance | Max. speed(km/h) | 83 | ||
| Max. slope of climb(%) | 25 | |||
| Min. turning radius(m) | 6 | |||
| Engine | Model | LD480 | ||
| Type | Four-cylinder, in-line,water-cooling, DI | |||
| Displacement(L) | 1.809 | |||
| Rated power(KW) | 29 | |||
| Max torque (N.m/rpm) | 97/2100 | |||
| Steering gear | Mechanical steering | |||
| Brake system | Service brake | Oir brake | ||
| Parking brake | Central drum brake | |||
| Auxiliary brake | / | |||
| Tyre size | 6.00-13 | |||
| Electric device | Rated voltage | 12V | ||
| Battery | 6-QW-100MF | |||

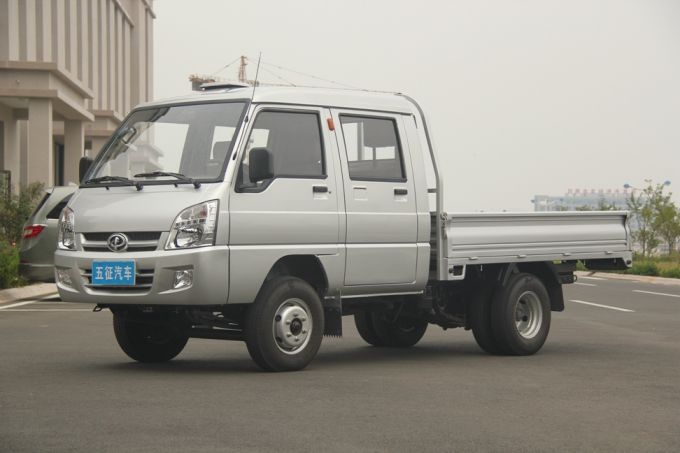

Product Images
-
