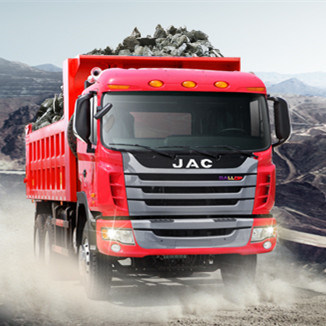

JAC 6X4 290HP Hfc3250kr1 Tipper Truck /Dumper
- USD 32000.35 /Unit
- 1 Unit
- 34 Unit
- 14 days
Product Description
JAC 6X4 Dump Truck(290hp)
Model:HFC3250KR1
Engine: 290HP
Transmission: RT11509C
Body:5400×2300×1400mm
Model:HFC3250KR1
Engine: 290HP
Transmission: RT11509C
Body:5400×2300×1400mm
| Half Height RoofCab,tilt cab | Drive mode | HFC3251KR1 |
| Model | 6×4 | |
| Seriousnumber | Y3100 | |
| Engine | Model | WP10.290 |
| Displacement(cc) | 9.726 | |
| Max output power(Hp/rpm) | 290/2200 | |
| Max torque(N.m/rpm) | 1160/1200 | |
| Transmission | Model | RT11509C |
| US Eaton Technology | ||
| Clutch | Mode | Single plate,dry,screw spring |
| RearAxle | Model | Steyr Technology-(5.73/6.72) |
| Main para | Overall Dimension(mm) | 8265×2495×3500 |
| Rear cargo dimension(mm) | 5400×2300×1400 | |
| Wheelbase(mm) | 3690+1350 | |
| Wheel Track(mm) | 2040/1860 | |
| Front/Rear Overhang(mm) | 1495/1730, | |
| 1495/1820 | ||
| Curb weight(Kg) | 13350/13580 | |
| Rated payload(Kg) | 26650/26420 | |
| GVW(Kg) | 40000 | |
| Max speed(Km/h) | 80 | |
| Radius of turning(m) | 9 | |
| Tire | Model | 12.00-20/ |
| 12.00R20 | ||
| /12.00R22.5 | ||
| The above mentioned specifications are subject to change without prior notice. | ||
