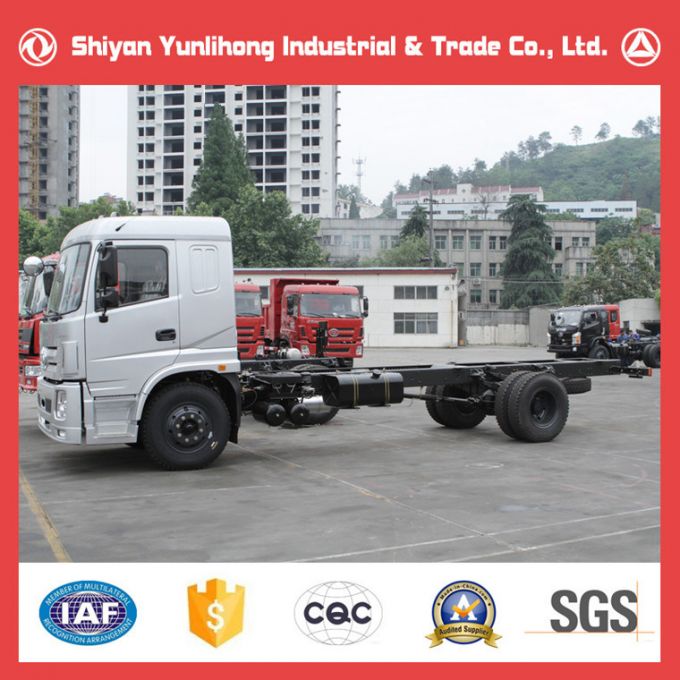

Light Duty Truck Chassis for 4X2/Flatbed Cargo Trucks Chassis

T280 4X2 Cargo truck chassis/10t Truck chassis for sale

OverllParameters
Truckmodel	STQ1166	Wheelbase	5200(mm)
Ratedloadingcapacity	10000(kg)	Overalldimension(L×W×H)	9040x2490x2890(mm)
GrossVehicleMass	20000(kg)	MaxEconomicalspeed	84km/h
Cabin
CabinModel	T280 LHD (1sleeper)	AirConditon	withMeritBrandA/C
Engine
Brand&Model	Cummins B140-33	Intakeway	Turbointer-cooling
Ratedpower&speed	140HP	Max.torque	640N.M
Enginetype	in-line,4-stroke,water-cooled	BorexStroke	102x120 (mm)
Displacement	6cylinders,5.9L,diesel	GreenBand	1200~1700RPM
Emissionstandard	Euro-IIIor Euro IV	Fuelinjectionpump	MechanicalPump
Gearbox
Brand&Model	Fast 8JS119TA
Type	Manual,8forwardgear,2reversegear,ratedinputtorque850N.M
Gearboxratio	Forward: 8.12,6.08,4.47,3.31,2.46,1.84,1.35,1.00
	Reverse:8.12,2.46
Chassisframe&SuspensionSystem
Chassisframe	framebreadth250mm,double-deck(6.5mm+5mm)
Frontaxle	5T Dongfeng Dana 153 frontaxlex1
Rearaxle	10T Dongfeng Dana 153 single-reductionrearaxlex1,defaultratio:3.91
Frontsuspension	Number/Thicknessofleafspring:9/16mm
Rearsuspension	Number/Thicknessofleafspring:10/16+8/13mm
Bodyworks
Tire	11R22.5 aoelus brand tubeless tirex7
FuelTank	280L aluminium
AirFilter	Standard

√ PRODUCTS QUALITY TEST
TO ENSURE SAFETY, OUR TECHNICAL DEPARTMENT DESIGNS TRUCK IN SOME DETAILS OF STABILITY, ACTIVE AND PASSIVE SAFETY.

√ STABILITY
OUR TRUCKS USE WELL KNOWN ENGINE AND STABLE MATCH TRANSMISSION ALSO FORGE TECHNOLOGY AXLES WHICH HAVE HIGHER STRENTH AND BETTER TENACITY THAN GENERAL CASTING AXLES. WE ENSURE IT IS FIT FOR MORE KINDS OF COMPLEX ROADS.

√ ACTIVE SAFETY & PASSIVE SAFETY
BRAKE SYSTEM WITH ABS, ASR ALSO LOAD SENSING VALVE AND MANUAL OPERATION INCREASE ACTIVE SAFETY OF TRUCKS. AT THE SAME TIME, WE ASSEMBLE TRUCK BY HIGH QUALITY CABIN DOORS, BUMPER SPARE PARTS TOGETHER WITH STRONG DOOR frame, BIG WINDSCREEN, WonDERFUL RADIAN REARVIEW TO DESALT SHADOW AND JAPANESE TECHNOLOGY SRS SYSTEM TO MAKE SURE HIGH PASSIVE SAFETY.
