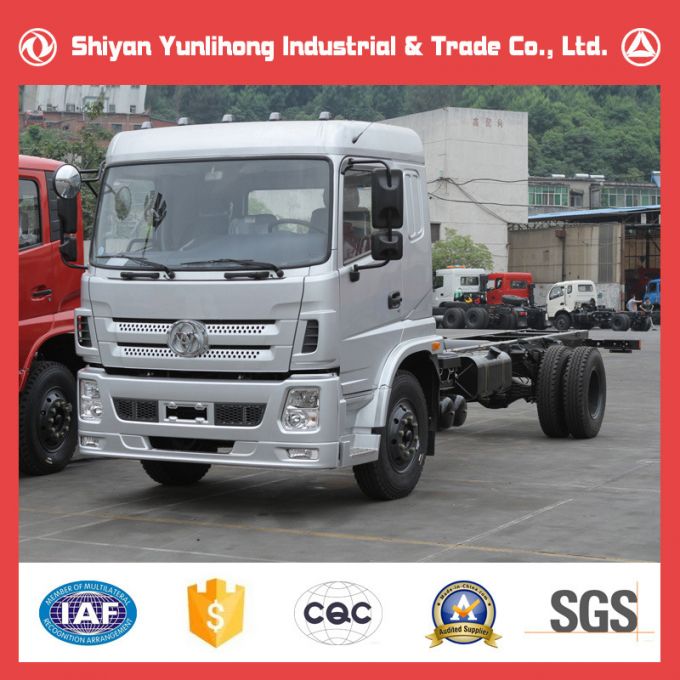

New Design 4X2 Cargo Trucks Chassis for Sale

OverllParameters
Truckmodel	STQ1166	Wheelbase	5200(mm)
Ratedloadingcapacity	10000(kg)	Overalldimension(L×W×H)	9040x2490x2890(mm)
GrossVehicleMass	20000(kg)	MaxEconomicalspeed	84km/h
Cabin
CabinModel	T280 LHD (1sleeper)	AirConditon	withMeritBrandA/C
Engine
Brand&Model	Cummins B140-33	Intakeway	Turbointer-cooling
Ratedpower&speed	140HP	Max.torque	640N.M
Enginetype	in-line,4-stroke,water-cooled	BorexStroke	102x120 (mm)
Displacement	6cylinders,5.9L,diesel	GreenBand	1200~1700RPM
Emissionstandard	Euro-IIIor Euro IV	Fuelinjectionpump	MechanicalPump
Gearbox
Brand&Model	Fast 8JS119TA
Type	Manual,8forwardgear,2reversegear,ratedinputtorque850N.M
Gearboxratio	Forward: 8.12,6.08,4.47,3.31,2.46,1.84,1.35,1.00
	Reverse:8.12,2.46
Chassisframe&SuspensionSystem
Chassisframe	framebreadth250mm,double-deck(6.5mm+5mm)
Frontaxle	5T Dongfeng Dana 153 frontaxlex1
Rearaxle	10T Dongfeng Dana 153 single-reductionrearaxlex1,defaultratio:3.91
Frontsuspension	Number/Thicknessofleafspring:9/16mm
Rearsuspension	Number/Thicknessofleafspring:10/16+8/13mm
Bodyworks
Tire	11R22.5 aoelus brand tubeless tirex7
FuelTank	280L aluminium
AirFilter	Standard

ν Light Self Weight To Increase Loading Weight
ν Standard Cummins Engine, Yuchai Engine Option
ν Single/Double Cabin

Features Of Our Team
* My Company Focuses On Off Road Trucks Such As 4x4, 6x6 Drive Trucks, Semitrailers And Connected Spare Parts.
* We Have Professional Research And Development Department To Keep On Working For Satisfy Clients's Requirements.
* Big Manufacturer Quality, But More Competitive Price To Take You High Performance Cost.
* More Than 30 Years Vehilce Design And Produce Experience Makes Your Trucks With High Safety And Comfortable Using Feeling.
* Active Sales Team With Professional Train On Automobiles And Business Let Your Cooperateion With Us More Easy And Smooth.
* Timely Work On After Sales Service To Solve Your Easy Wear Spare Parts Problem.
Factory Assembly Line View

We Manufacture Trucks On New Truck Assembly Line Which Established In Shiyan City, The Motor City Of China. Here You Can Find Wonderful Line With High Efficiency And High Precision. Our Trucks Use Well Known Engine And Stable Match Transmission Also Forge Technology Axles Which Have Higher Strenth And Better Tenacity Than General Casting Axles. We Ensure It Is Fit For More Kinds Of Complex Roads.

√ Products Quality Test
To Ensure Safety, Our Technical Department Designs Truck In Some Details Of Stability, Active And Passive Safety.

√ Stability
Our Trucks Use Well Known Engine And Stable Match Transmission Also Forge Technology Axles Which Have Higher Strenth And Better Tenacity Than General Casting Axles. We Ensure It Is Fit For More Kinds Of Complex Roads.

√ Active Safety & Passive Safety
Brake System With Abs, Asr Also Load Sensing Valve And Manual Operation Increase Active Safety Of Trucks. At The Same Time, We Assemble Truck By High Quality Cabin Doors, Bumper Spare Parts Together With Strong Door frame, Big Windscreen, Wonderful Radian Rearview To Desalt Shadow And Japanese Technology Srs System To Make Sure High Passive Safety.

Payment Term:
1. T/T payment, 30% T/T deposit, and 70% balance before delivery.
2. L/C at sight 100%.
3. 30% T/T deposit, and 70% L/C at sight for balance.

Order Information:
Delivery time: 15-20 working days.
Loading port: Any port as you need.
Packing: Nude Cargo With Anti-Rust Dealing.

Company Brief Introduction:
Shiyan Yunlihong Industrial & Trade Co., Ltd , located in Shiyan, motor city of China, is a high quality supplier of vehicle connected products, such as trucks, semi-trailers, spare parts.
Yunlihong was born in 2003. After more than 10 years' hard work, we established professional research and development department to ensure satisfactory production, and also found sincere ways to service for our clients from different areas of the world. Our clients are from South America, South-east Asia, Africa, Oceania etc.
Our deep and win- win cooperation will take you not only wonderful automobiles but also good experience on business and life.


FAQ:
Q : Are your manufacturer ?
A : We are supplier of vehicle products for over 12 years. Thogh we are not manufacturer, we have China famous vehicle factories to be our professional background and we have research and development department of ourselves to design special vehilces according to your reasonable needs. Also we have our own channal to get most competitive price for
your high performance cost.

Q : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.

Q : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.

Q : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles. We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
